Brand: ATR
Origin: China
Specifications: Array 2~155 Way
Dielectric: COG,X7R
Temperature: -55℃~125℃
Voltage: 100V,200V,300V,3000V
Capacity: up to 600nF
Note:can be designed and produced according to the requirement of customers.

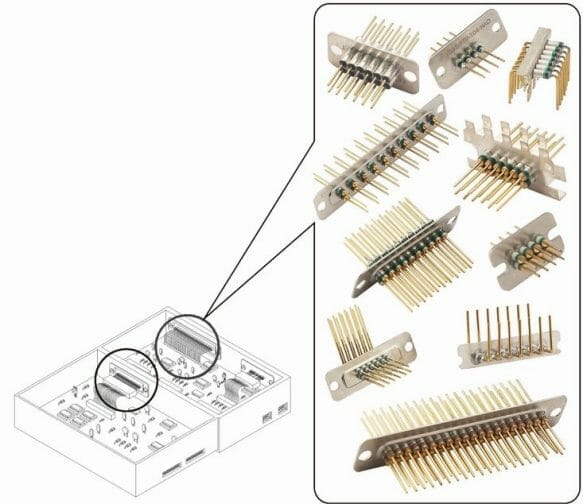

The Filter Plates & Arrays provides a convenient method for filtering a large number of wires through the shield. The use of the Filter Plates & Arrays can save the trouble and workload of welding or installing the through-type filter one by one on the panel, and also improve the reliability of the connection.
This product has ceramic cylindrical through-core capacitors which are independently designed and developed by ATR, equipped with gold-plated and gold-plated pins . And has the characteristics of good electrical conductivity, not easy to oxidize, and high reliability.
Customers can choose different specifications of Filter Plates & Arrays according to the number of wires to be connected and the frequency of the signal. Customized serval also can be provided.
| Temperature：-55℃~ +125℃；-25℃~ +85℃； |
| Dielectric loss：≤2.0%；≤3.5%； |
| Rated current：10A |
| Rated voltage：200VDC |
| Dielectric strength: U=3UR for 1 minute, there should be no breakdown or arcing. |
