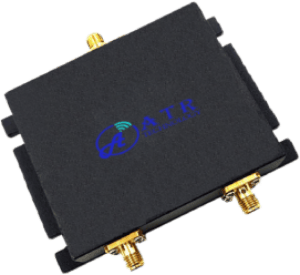

ATR provides various types of cavity power dividers:
2-way to 32-way Optional,
Max power can reach 100,000 watts, frequency covers 0-50GHz.
High quality,fast delivery
Application:
RF microwave & millimeter wave
Wireless communications
Military
Instrumentation and other fields
| Part Number | Output | Freq. | IL | Isolation | Input VSWR | Output VSWR | Amplitude Balance | Phase Balance | Connector | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit | Way | GHz | dB.Max | dB.Min | Max | Max | ±dB.Max | ±Deg.Max | Type | ||
| XPD0.5-2-S2 | 2 | 0.5-2.0 | 0.5 | 20 | 1.25 | 1.2 | ±0.2 | ±2° | SMA | ||
| XPD0.5-18-S2 | 2 | 0.5-18.0 | 1 | 16 | 1.5 | 1.35 | ±0.3 | ±2.5° | SMA | ||
| XPD0.8-2.5-S2 | 2 | 0.8-2.5 | 0.4 | 20 | 1.3 | 1.2 | ±0.2 | ±2° | SMA | ||
| XPD1-2-S2 | 2 | 1.0-2.0 | 0.35 | 20 | 1.2 | 1.15 | ±0.2 | ±2° | SMA | ||
| XPD1-4-S2 | 2 | 1.0-4.0 | 0.5 | 20 | 1.3 | 1.2 | ±0.3 | ±2° | SMA | ||
| XPD1-8-S2 | 2 | 1.0-8.0 | 1 | 20 | 1.35 | 1.3 | ±0.3 | ±5° | SMA | ||
| XPD1-12.4-S2 | 2 | 1.0-12.4 | 1.5 | 16 | 1.5 | 1.4 | ±0.4 | ±6° | SMA | ||
| XPD1-18-S2 | 2 | 1.0-18.0 | 1.2 | 16 | 1.5 | 1.4 | ±0.3 | ±5° | SMA | ||
| XPD2-4-S2 | 2 | 2.0-4.0 | 0.35 | 20 | 1.25 | 1.2 | ±0.2 | ±2° | SMA |
