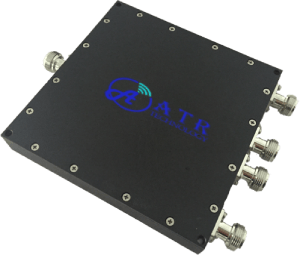

Power divider 4-way

ATR provides various types of cavity power dividers:

2-way to 32-way Optional,
Max power can reach 100,000 watts, frequency covers 0-50GHz.
High quality,fast delivery

Application:

RF microwave & millimeter wave
Wireless communications
Military
Instrumentation and other fields

Show entries

Search:

Edit
Part Number	Output	Freq.	IL	Isolation	Input VSWR	Output VSWR	Amplitude Balance	Phase Balance	Connector
Unit	Way	GHz	dB.Max	dB.Min	Max	Max	±dB.Max	±Deg.Max	Type
XPD0.5-2-S4	4	0.5-2.0	1	20	1.25	1.2	±0.3	±3°	SMA
XPD0.5-6-S4	4	0.5-6.0	1.8	18	1.5	1.4	±0.3	±4°	SMA
XPD0.5-18-S4	4	0.5-18.0	2.5	16	2.05	1.65	±0.35	±8°	SMA
XPD0.8-2.5-S4	4	0.8-2.5	0.7	20	1.3	1.2	±0.3	±6°	SMA
XPD1-2-S4	4	1.0-2.0	0.6	20	1.25	1.25	±0.3	±3°	SMA
XPD1-4-S4	4	1.0-4.0	0.8	20	1.3	1.2	±0.3	±4°	SMA
XPD1-8-S4	4	1.0-8.0	1.6	20	1.45	1.35	±0.3	±6°	SMA
XPD1-12.4-S4	4	1.0-12.4	2.8	16	1.6	1.3	±0.5	±7°	SMA
XPD1-18-S4	4	1.0-18.0	2.8	16	1.7	1.5	±0.5	±8°	SMA
XPD2-4-S4	4	2.0-4.0	0.5	20	1.25	1.2	±0.3	±3°	SMA
XPD2-8-S4	4	2.0-8.0	1.2	20	1.4	1.3	±0.4	±4°	SMA
XPD2-18-S4	4	2.0-18.0	1.8	16	1.65	1.6	±0.4	±6°	SMA
XPD4-8-S4	4	4.0-8.0	0.8	20	1.3	1.25	±0.3	±3°	SMA
XPD4-18-S4	4	4.0-18.0	1.3	18	1.6	1.5	±0.4	±6°	SMA
XPD6-18-S4	4	6.0-18.0	1	18	1.6	1.5	±0.3	±6°	SMA
XPD2-40-S4	4	2-40	3	15	2	1.6	±0.5	±10	2.92
XPD6-40-S4	4	6-40	2	15	2	1.6	±0.4	±8	2.92
