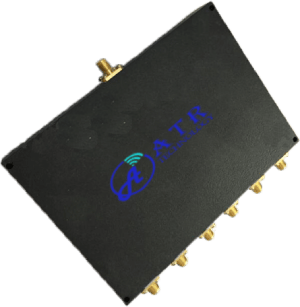

Power Divider 6 Way

ATR provides various types of cavity power dividers:

2-way to 32-way Optional,
Max power can reach 100,000 watts, frequency covers 0-50GHz.
High quality,fast delivery

Application:

RF microwave & millimeter wave
Wireless communications
Military
Instrumentation and other fields

Show entries

Search:

Edit
Part Number	Output	Freq.	IL	Isolation	Input VSWR	Output VSWR	Amplitude Balance	Phase Balance	Connector
Unit	Way	GHz	dB.Max	dB.Min	Max	Max	±dB.Max	±Deg.Max	Type
XPD0.5-2-S6	6	0.5-2.0	1.5	20	1.4	1.3	±0.4	±5°	SMA
XPD0.8-2.5-S6	6	0.8-2.5	1.2	20	1.4	1.25	±0.5	±8°	SMA
XPD1-4-S6	6	1.0-4.0	1.5	20	1.4	1.3	±0.4	±5°	SMA
XPD1-8-S6	6	1.0-8.0	1.8	18	1.4	1.3	±0.4	±8°	SMA
XPD2-4-S6	6	2.0-4.0	1	20	1.4	1.3	±0.4	±6°	SMA
XPD2-8-S6	6	2.0-8.0	1.5	18	1.4	1.3	±0.4	±6°	SMA
XPD2-18-S6	6	2.0-18.0	2.2	16	1.8	1.5	±0.7	±8°	SMA
XPD4-18-S6	6	4.0-18.0	2.2	16	1.8	1.5	±0.7	±8°	SMA
XPD6-18-S6	6	6.0-18.0	1.8	18	1.8	1.5	±0.8	±10°	SMA
XPD0.5-2-S6	6	0.5-2.0	1.5	20	1.4	1.3	±0.4	±5°	SMA
XPD0.8-2.5-S6	6	0.8-2.5	1.2	20	1.4	1.25	±0.5	±8°	SMA
XPD1-4-S6	6	1.0-4.0	1.5	20	1.4	1.3	±0.4	±5°	SMA
XPD1-8-S6	6	1.0-8.0	1.8	18	1.4	1.3	±0.4	±8°	SMA
XPD2-4-S6	6	2.0-4.0	1	20	1.4	1.3	±0.4	±6°	SMA
XPD2-8-S6	6	2.0-8.0	1.5	18	1.4	1.3	±0.4	±6°	SMA
XPD2-18-S6	6	2.0-18.0	2.2	16	1.8	1.5	±0.7	±8°	SMA
XPD4-18-S6	6	4.0-18.0	2.2	16	1.8	1.5	±0.7	±8°	SMA

Showing 1 to 18 of 18 entries
