Tab & Cover Resistors

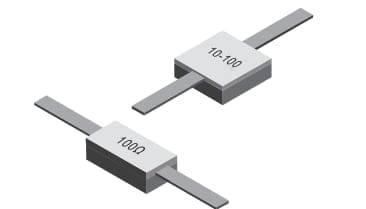

RIG2/RFG-RF Double-Leaded Terminations

General Specifications

Power: 10~500Watts
Standard Resistance: 100 Ohm
Resistance Tolerance: ±1%、±2%、±5%(default)
Temperature Coefficient: ≤±300PPM/°C //≤±250PPM/°C
Temperature Range : -55°C~125°C/-55°C~150°C
Default Substrate Material: BeO
RoHS compliant
We can provide the customized product according to the customer's requirements.

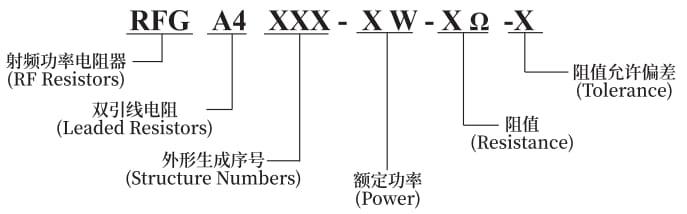

Order Information

Product Reference

Power(W)	Capacitance(≤pF)	Model	Dimensions(mm)

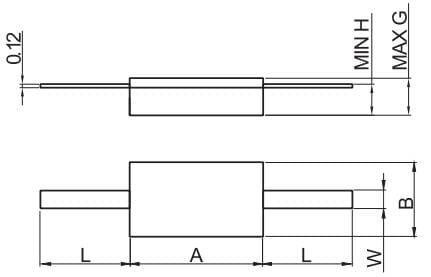

Power(W)	Capacitance(≤pF)	Model	A±0.2	B±0.2	H(min)	G(max)	W±0.2	L±0.5
10	1.3	RIG2-B21	4	4	1.1	2	1	5
20	1.3	RIG2-B21	4	4	1.1	2	1	5
30	1.5	RIG2-B23	5	6	1.1	2	1	5
40	1.4	RIG2-B	4	6	1.1	2	1	5
10	3.4	RFGA401	6	9	1.1	2	2	5
30	2.5	RFGA401	6.4	6.4	1.1	2	1.5	8
30	0.5	RFGA402	3	6	3.1	4	1	6
50	2.5	RFGA401	6.4	6.4	1.1	2	1.5	8
50	0.9	RFGA403	6.4	6.4	3.1	4	1	5
60	2.5	RFGA401	6.4	6.4	1.1	2	1.5	8
60	0.9	RFGA403	6.4	6.4	3.1	4	1.5	5
100	1	RFGA401	6.4	6.4	3.1	4	1	5
100	3.5	RFGA402	6.4	6.4	1.6	2.5	3	5
150	4	RFGA401	9.5	6.35	1.1	2	1.5	5
150	3.3	RFGA402	19	4	1.6	2.5	1.5	5
250	5	RFGA401	10	12	1.6	2.5	2.3	5
500	5.5	RFGA401	12.7	12.7	2.1	3	1.5	5

Power(W)	Capacitance(≤pF)	Model	Dimensions(mm)
Power(W)	Capacitance(≤pF)	Model	A±0.2	B±0.2	H(min)	G(max)	W±0.2	L±0.5
10	1	RIG2-B3	5	2.5	1.1	2	1	5
30	1	RIG2-B3	5	2.5	1.1	2	1	5
