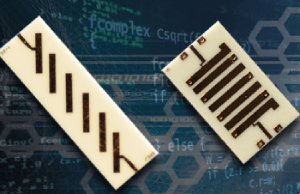

Thin Film Band Pass Filters

ATR uses leading thin-film ceramic technology to manufacture high-performance filters,
Frequency coverage DC-60GHZ,
There are low-pass, band-pass, and high-pass types available,
Can meet customers’ demanding technical performance requirements,
Used in military, commercial, instrumentation, microwave and millimeter wave wireless communication fields

Show entries

Search:

Edit
Model	IL0@f0	Frequency Range	Attenuation	Size(mm)
	(dB)	(GHz)	(dB)
BMBP1R75/R4-6JC	2.5	1.55-1.95	≥[email protected]&2.5GHz	7.5×7×0.39
BMBP2R03/R1-5FC	3.2	1.98-2.08	≥[email protected]&2.5GHz	7×8×0.39
BMBP2R3/R6-6DC	2	2.06-2.55	≥[email protected]&3.0GHz	5.5×7.5×0.39
BMBP2R3/1-8DC	2	1.8-2.8	≥[email protected]&3.45GHz	6.5×8.5×0.39
BMBP2R4/R6-8JC	2	2.1-2.7	≥[email protected]&3.5GHz	7×8.5×0.39
BMBP2R5/R3-6DC	2.5	2.4-2.6	≥[email protected]&2.95GHz	7×8.5×0.39
BMBP2R5/R7-8JC	2	2.15-2.85	≥[email protected]&3.5GHz	7×8×0.39
BMBP2R5/1-8JC	2	2-3	≥[email protected]&3.65GHz	7×8.2×0.39
BMBP2R5/1-8DC	2	2.0-3.0	≥[email protected]&3.65GHz	7×8.5×0.39
BMBP2R5/1R1-8JC	2.5	1.95-3.05	≥[email protected]&3.9GHz	6.5×8.0×0.39
BMBP2R6/1-8JC	2	2.1-3.15	≥[email protected]&4GHz	7×7.5×0.39
BMBP2R6/1R1-8JC	2	2.05-3.15	≥[email protected]&3.9GHz	7.0×8.0×0.39
BMBP2R65/1R3-8JC	2.2	2.05-3.3	≥[email protected]&4.1GHz	6.5×7.8×0.39
BMBP2R675/1R25-8JC	2.5	2.05-3.3	≥[email protected]&4.15GHz	6.5×7.5×0.39
BMBP2R7/R2-4DC	3.5	2.65-2.75	≥[email protected]&3.5GHz	5.5×5×0.26
BMBP2R75/R2-4DC	3.5	2.7-2.8	≥[email protected]&3.6GHz	5.5×5×0.26
BMBP2R75/R3-6DC	2.5	2.65-2.85	≥[email protected]&3.2GHz	8.5×7.8×0.39
BMBP2R75/R3-8JC	3.5	2.6-2.9	≥[email protected]&3.35GHz	8.0×7.5×0.39
BMBP2R75/1R2-8JC	2.5	2.15-3.35	≥[email protected]&4.15GHz	6.5×7.2×0.39
BMBP2R75/1R3-7DC	2	2.1-3.30	≥[email protected]&4.05GHz	6×7.8×0.39
BMBP2R775/R35-8JC	2.5	2.6-2.95	≥[email protected]&3.4GHz	8×7.5×0.39
BMBP2R8/R2-4DC	3.5	2.8-2.9	≥[email protected]&3.7GHz	5.5×5×0.26
BMBP2R85/R1-5FC	3.5	2.8-2.9	≥[email protected]&3.4GHz	5.5×5.3×0.26
BMBP3/1-10DC	2.5	2.55-3.5	≥[email protected]&4.15GHz	8×7.8×0.39
BMBP3/1R3-8JC	2	2.35-3.65	≥[email protected]&4.5GHz	7.0×7.0×0.39
BMBP3/1R8-8JC	2	2.1-3.9(BW2dB)	≥[email protected]&4.6GHz	4.5×7.5×0.39
BMBP3R1/R7-6DC	1.5	2.75-3.45	≥[email protected]&4.4GHz	6×7×0.39
BMBP3R1/R1-5FC	3.5	3.05-3.15	≥[email protected]&3.7GHz	5.5×5.3×0.26
BMBP3R1/R8-4DA	1	2.7-3.5	≥[email protected]&4.5GHz	6.15×6.15×0.39
BMBP3R15/R7-8JC	2	2.8-3.5	≥[email protected]&4.2GHz	8.0×7.0×0.39
BMBP3R15/R9-8JC	2.5	2.7-3.6	≥[email protected]&4.4GHz	7.5×7×0.39
BMBP3R15/1R2-6DC	1.5	2.6-3.65	≥[email protected]&4.4GHz	5.5×6.7×0.39
BMBP3R2/R2-5FC	3	3.1-3.3	≥[email protected]&3.85GHz	7×5.2×0.39
BMBP3R2/R6-8JC	2	2.9-3.5	≥[email protected]&4.2GHz	7.5×6.5×0.39
BMBP3R2/1-8JC	2	2.7-3.7	≥[email protected]&4.4GHz	7.0×6.8×0.39
BMBP3R21/R1-5FC	4	3.16-3.26	≥[email protected]&3.70GHz	7.5×5.2×0.39
BMBP3R25/R4-7SC	2.5	3.05-3.45	≥[email protected]&4GHz	5.5×6.5×0.39
BMBP3R25/1R5-8JC	2	2.5-4	≥[email protected]&5.0GHz	7×6.7×0.39
BMBP3R35/R2-5FC	3	3.25-3.45	≥[email protected]&4.0GHz	5.5×4.8×0.26
BMBP3R45/R2-4FC	2	3.35-3.55	≥[email protected]&4.5GHz	4.8×4.8×0.39
BMBP3R5/R5-7DC	2	3.25-3.75	≥[email protected]&4.15GHz	8×6×0.39
BMBP3R5/1R2-9DC	2	3-4.05	≥[email protected]&4.8GHz	8×6.6×0.39
BMBP3R5/1R3-10JC	3	2.85-4.15	≥[email protected]&5.05GHz	8.0×6.2×0.39
BMBP3R55/R9-8JC	2	3.1-4	≥[email protected]&4.65GHz	7.5×6×0.39
BMBP3R55/1R1-8JC	2	3-4.1	≥[email protected]&4.9GHz	7.5×6.2×0.39
BMBP3R59/R02-5FA	6.5	3.58-3.60	≥[email protected]&3.8GHz	8×8×0.26
BMBP3R6/1-8JC	1.8	3.1-4.1	≥[email protected]&4.8GHz	7×6×0.39
BMBP3R6/1R6-8JC	2	2.8-4.4	≥[email protected]&5.6GHz	6.5×6×0.39
BMBP3R6/1R7-10DC	2	2.75-4.45	≥[email protected]&5.5GHz	7×6.2×0.39
BMBP3R6/1R75-8JC	2	2.7-4.45	≥[email protected]&5.6GHz	6.5×6.2×0.39
BMBP3R75/R5-5FC	2.5	3.5-4.0	≥[email protected]&4.8GHz	5.5×4.6×0.39
BMBP3R75/1R9-8JC	2.2	2.8-4.7	≥[email protected]&5.85GHz	6.5×5.5×0.39
BMBP3R78/R04-5FA	6.5	3.78-3.78	≥[email protected]&4.02GHz	8×7.7×0.26
BMBP3R8/R6-6DC	1.5	3.5-4.1	≥[email protected]&4.8GHz	6.5×6×0.39
BMBP3R85/R9-8JC	2	3.4-4.3	≥[email protected]&5.0GHz	8×5.8×0.39
BMBP3R9/R5-7DC	2	3.65-4.15	≥[email protected]&4.65GHz	8×5.5×0.39
BMBP4/R2-5FC	2.5	3.9-4.1	≥[email protected]&4.8GHz	6×4.8×0.39
BMBP4/R6-8JC	2	3.7-4.3	≥[email protected]&5.1GHz	8×5.5×0.39
BMBP4/1-8JC	2	3.5-4.5	≥[email protected]&5.5GHz	8×5.5×0.39
BMBP4/2R1-8JC	2.2	2.95-5.05	≥[email protected]&6.3GHz	6.5×5.5×0.39
BMBP4/2-10JC	2.5	3-5	≥[email protected]&6.05GHz	7.5×5.5×0.39
BMBP4/4R4-5QA	1.5	2-6	≥[email protected] GHz ≥[email protected]	12×5.0×0.26
BMBP4R05/1R3-9DC	2	3.4-4.65	≥[email protected]&5.4GHz	8×6×0.39
BMBP4R1/1-8JC	2	3.6-4.6	≥[email protected]&5.4GHz	8.0×5.5×0.39
BMBP4R1/1R3-9DC	2	3.5-4.7	≥[email protected]&5.4GHz	8×6×0.39
BMBP4R2/2R15-8JC	2.2	3.15-5.3	≥[email protected]&6.6GHz	6.5×5.2×0.39
BMBP4R3/R5-8JC	2.5	4.05-4.55	≥[email protected]&5.2GHz	8.5×5.2×0.39
BMBP4R35/R6-7DC	2	4.05-4.65	≥[email protected]&5.2GHz	8×5.2×0.39
BMBP4R35/1R5-10JC	2	3.6-5.1	≥[email protected]&6.1GHz	8.5×5.0×0.39
BMBP4R45/3R7-9QC	1.6	2.55-6.3	≥[email protected]&8.0GHz	9×5.5×0.39
BMBP4R5/R4-7SC	2.5	4.3-4.7	≥[email protected]&5.3GHz	7×5.2×0.39
BMBP4R5/R9-8JC	2	4.05-4.95	≥[email protected]&5.7GHz	8.0×5.0×0.39
BMBP4R5/1R2-9DC	2	3.9-5.1	≥[email protected]&5.9GHz	8×5.2×0.39
BMBP4R55/R02-5FA	4.8	4.54-4.56	≥[email protected]&5GHz	6×6×0.26
BMBP4R55/R9-9DC	2.5	4.1-5.0	≥[email protected]&5.85GHz	8.5×5×0.39
BMBP4R6/2R2-8JC	2	3.5-5.7	≥[email protected]&7.1GHz	6.5×4.8×0.39
BMBP4R62/R04-5FA	4.8	4.6-4.64	≥[email protected]&5.1GHz	6×6×0.26
BMBP4R63/R25-8ZC	4	4.5-4.75	≥[email protected]&5.25GHz	7.0×5.0×0.39
BMBP4R65/2R3-8JC	2.5	3.5-5.8	≥[email protected]&7.25GHz	6.5×4.5×0.39
BMBP4R7/R2-8ZC	3	4.6-4.8	≥[email protected]&5.35GHz	7×5×0.39
BMBP4R7/2R2-8JC	1.8	3.6-5.8	≥[email protected]&7.2GHz	7×5×0.39
BMBP4R74/R02-5FA	4.8	4.73-4.75	≥[email protected]&5.15GHz	6×5.7×0.26
BMBP4R75/R3-5FC	2.5	4.6-4.9	≥40dB@4&5.6GHz	6.5×4.2×0.39
BMBP4R79/R02-5FA	6.5	4.78-4.80	≥[email protected]&5.05GHz	8×6.3×0.26
BMBP4R8/R6-8JC	2	4.5-5.1	≥[email protected]&5.9GHz	8.5×5×0.39
BMBP4R83/R02-5FA	4.8	4.82-4.84	≥[email protected]&5.25GHz	6×5.7×0.26
BMBP4R85/R9-8JC	2.5	4.4-5.3	≥[email protected]&6.2GHz	8×5×0.39
BMBP4R94/R02-5FA	4.8	4.93-4.95	≥[email protected]&5.35GHz	6×5.5×0.26
BMBP4R95/1-8JC	2.2	4.45-5.45	≥[email protected]&6.25GHz	8.0×4.5×0.39
BMBP4R95/2R1-7DC	1.5	4-6	≥[email protected]&7.1GHz	6×4.8×0.39
BMBP5/R4-7SC	2.5	4.8-5.2	≥[email protected]&5.9GHz	7×4.8×0.39
BMBP5/R4-8ZC	3	4.8-5.2	≥[email protected]&5.8GHz	7×4.8×0.39
BMBP5/1R2-8DC	2	4.5-5.6	≥[email protected]&6.3GHz	8×5.3×0.39
BMBP5/1R6-6JC	1.5	4.2-5.8	≥[email protected]&7.4GHz	6×4.7×0.39
BMBP5/2-8JC	1.6	4-6	≥[email protected]&7.0GHz	6.5×4.7×0.39
BMBP5/2R2-10DC	2	3.9-6.1	≥[email protected]&7.3GHz	7.5×4.5×0.39
BMBP5/2R35-8JC	1.8	3.85-6.2	≥[email protected]&7.55GHz	6.5×4.8×0.39
BMBP5R06/R04-5FA	4.5	5.05-5.08	≥[email protected]&5.5GHz	6.5×5.5×0.26
BMBP5R1/2R2-9DA	2	4.1-6.15	≥[email protected]&7.1GHz	8×7.3×0.39
