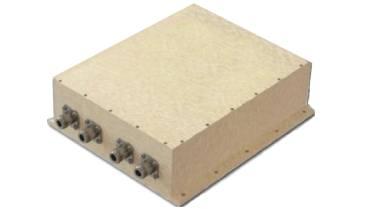

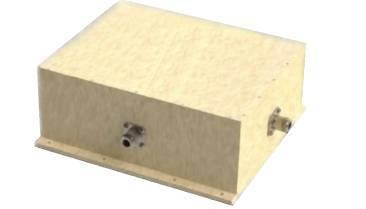

Broadband Power Combiner/Divider
The phases among all radio frequency power channels are the same.
It can be used for the combination or distribution of various power signals and has the advantages of small size, wide frequency band, low insertion loss and good consistency.
It can provide power signal combination or distribution with a 180° phase difference between channels, and is characterized by multi - frequency multiplication, small size and high power.
| Function Mode | Part No. | Frequency (MHz) | Average Power(W) | Insertion loss (dB,max.) | Isolation (dB，min.) | Amplitude/Phase balance (± dB/°max.) | Standing wave (max.) | Size and ports (mm) | Others | |
| 2 Way | BKHFT1127-* | 1.5~30 | 600 | 0.3 | 25 | -/3° | 1.25 | 100x100x40 Port:N | - | |
| BKHFT1128-* | 10~100 | 10 | 0.25 | 20 | 0.2/- | 1.25 | 40x40x25 Port:SMA | - | ||
| 4 Way | BKHFT1129-* | 20~200 | 1.8k | 0.5 | 15 | 0.2/- | 1.25 | 213x238x57 Distribution Port:N Combining Port:SC | - | |
| BKHFT1130-* | 30~110 | 3k | 0.5 | 18 | -/5° | 1.35 | 235x210x68; Port:SC | 1. Cooling method: Air cooling 2. Temperature control: 85℃ | ||
| BKHFT1131-* | 3~28 | 50 | 0.25 | 20 | -/3° | 1.25 | 130x60x60 Port:SMA | - | ||
| BKHFT1132-* | 3~28 | 6k | 0.3 | 20 | -/3° | 1.25 | 482.6x177.8x570 Port:L29 | 1. Cooling method: Air cooling 2. Temperature control: 85℃ | ||
| 8 Way | BKHFT1133-* | 4~30 | 50 | 0.3 | 20 | -/3° | 1.25 | 120x60x20 Port:SMA-K | - | |
