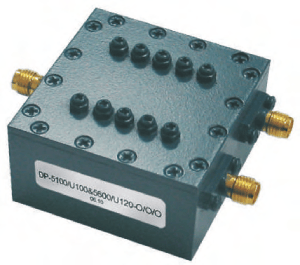

Features

Cavity design, Frequency Range：30～18000MHz
Section Number: 2~10 or more
3dB Bandwidth(%): 0.3%~20% or more
Maximum VSWR 1.3:1 (Typ 1.5:1)
Custom optimized configuration available

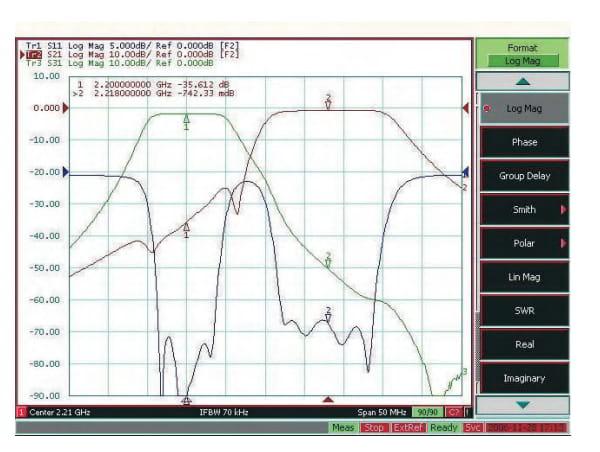

Specification

Series DP
Freq MHz 30-18000
BW/F0×100% 0.3%-20%
VSWR ≤1.5:1
Minimuma Space 2.4:1
Powerb Handling 10W
Impedance 50Ω
Sections 2-10
Operating Temp -55～+85℃

Note:

a. Frequency Separation defined as (FC2-FC1)/BW , BW is the wider one of the two channel 3dB

b. General power handling is 10W, optimized design can reach 300W or better
