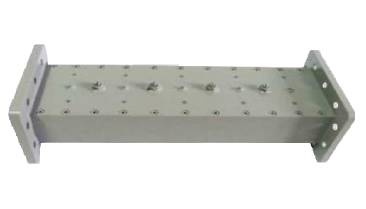

Cavity Filter - BD Series Waveguide Filter
| Part No. | Frequency Range(Hz) | Passband Loss(dB) | Passband Standing Wave | Out Of Band Suppression | Volume (mm3) |
| BKLBD-14.9-15.1G | 14.9~15.1G | 1 | 1.5:1 | >[email protected],15.25GHz | 154x21x12.5 |
| BKLBD-34-36G | 34~36G | 1 | 1.5:1 | >[email protected],38.5GHz | 64x15.5x9.5 |
| BKLBD-27-39G | 27~39G | 0.6 | 1.5:1 | >20dB@25GHz | 45x15.5x9.5 |
| BKLBD-26.25-26.75G | 26.25~26.75G | 0.8 | 1.5:1 | >[email protected] | |
| BKLBD-27.25-27.75G | 27.25~27.75G | 0.8 | 1.5:1 | >30dB@26GHz | |
| BKLBD-10.7-12.75G | 10.7~12.75G | 0.3 | 1.5:1 | >30dB@14GHz | 77x30x20 |
| BKLBD-14.5-14.61G | 14.5~14.61G | 0.8 | 1.5:1 | >[email protected] | 70x60x15 |
