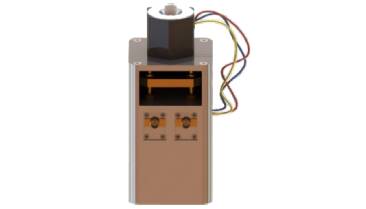

Cavity Filter - DJX Series
High-power mechanical electrically tunable filter
| Part No. | Frequency Range(Hz) | 3dB Band width (Hz) | Center Frequency Loss(dB) | Passband Standing Wave | Out Of Band Suppression | Volume (mm3) |
| BKLDJX-610-960M | 610~960M | 16~20M | <1.5 | 1.5:1 | △f60dB<140MHz | 350x80x80 |
| BKLDJX-1350-1850M | 1350~1850M | 16~20M | <1.5 | 1.5:1 | △f60dB<140MHz | 300x70x70 |
| BKLDJX-4400-5000M | 4400~5000M | 40~46M | <1 | 1.5:1 | △f60dB<200MHz | 175x54x54 |
| BKLDJX-5600-5900M | 5600~5900M | 40~46M | <1.5 | 1.5:1 | △f60dB<200MHz | 130x90x28 |
