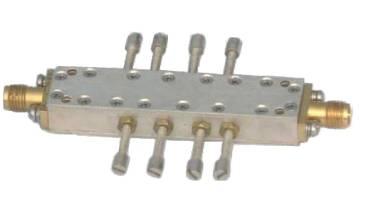

Cavity Filter - JZ Series Interdigital Filter
| Part No. | Frequency Range(Hz) | Passband Loss(dB) | Passband Standing Wave | Out Of Band Suppression | Volume (mm3) |
| BKLJZ-610-670M | 610~670M | 1 | 1.3:1 | >70dB@570,710MHz | 180x66x21 |
| BKLJZ-710-770M | 710~770M | 1 | 1.3:1 | >70dB@670,810MHz | 180x66x21 |
| BKLJZ-1000-1500M | 1000~1500M | 1 | 1.6:1 | >20dB@960MHz | 160x38x18 |
| BKLJZ-1200-2000M | 1200~2000M | 1 | 1.6:1 | >55dB@1000,2400MHz | 58x32x12 |
| BKLJZ-2000-3600M | 2000~3600M | 1 | 1.6:1 | >55dB@1800,4000MHz | 73x22x13 |
| BKLJZ-3600-6000M | 3600~6000M | 1 | 1.6:1 | >55dB@3000,6960MHz | 64x16x11 |
| BKLJZ-6000-8400M | 6000~8400M | 1 | 1.6:1 | >50dB012GHz | 70x14x11 |
| BKLJZ-12-18G | 12~18G | 1 | 1.6:1 | >50dB@9,19GHz | 80x13x9 |
| BKLJZ-2-4G | 2~4G | 0.4 | 1.3:1 | >[email protected] | 35x35x7.2 |
| BKLJZ-4-8G | 4~8G | 0.5 | 1.3:1 | >[email protected] | 40x25x7.2 |
