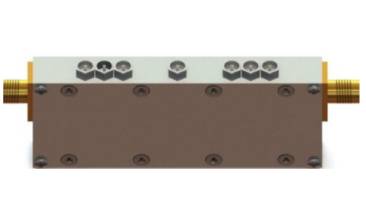

Cavity Filter - LZ Series Comb Line Filter
| Part No. | Frequency Range(Hz) | Passband Loss(dB) | Passband Standing Wave | Out Of Band Suppression | Volume (mm3) |
| BKLLZ-610-670M | 610~670M | 0.8 | 1.5:1 | >70dB@570,710MHz | 160x66x21 |
| BKLLZ-775-882M | 775~882M | 1 | 1.5:1 | >70dB@709,949MHz | 60x38x21 |
| BKLLZ-1340-1485M | 1340~1485M | 1.2 | 1.5:1 | >70dB@1227,1598MHz | 160x38x18 |
| BKLLZ-1590-1735M | 1590~1735M | 1.2 | 1.5:1 | >70dB@l447,1847MHz | 160x38x18 |
| BKLLZ-2700-3100M | 2700~3100M | 1.5 | 1.5:1 | >55dB@2300,3500MHz | 85x21x13 |
| BKLLZ-3900-4500M | 3900~4500M | 1.5 | 1.5:1 | >55dB@3600,4800MHz | 85x17x12 |
| BKLLZ-5100-5700M | 5100~5700M | 1.5 | 1.5:1 | >55dB@4800,6000MHz | 85x15x11 |
| BKLLZ-13.6-18G | 13.6~18G | 1 | 1.6:1 | >70dB@11,20.6GHz | 70x13x9 |
| BKLZ-2.7-3.5G | 2.7~5G | 0.5 | 1.3:1 | >50dB@5GHz >35dB@10GHz | 32x20x11 |
