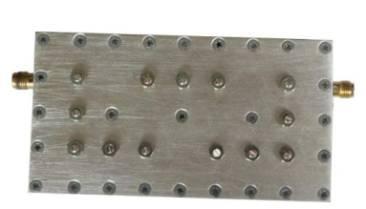

Cavity Filter - TZ Series Coaxial Cavity Filter
| Part No. | Frequency Range(Hz) | Passband Loss(dB) | Passband Standing Wave | Out Of Band Suppression | Volume (mm3) |
| BKLTZ-225-230M | 225~230M | 1 | 1.3:1 | >50dB@216,239MHz | 165x90x38 |
| BKLTZ-300-335M | 300~335M | 1.2 | 1.3:1 | >50dB@291,344MHz | 165x90x38 |
| BKLTZ-395-400M | 395~400M | 1.2 | 1.3:1 | >50dB@386,409MHz | 165x90x38 |
| BKLTZ-1725-1850M | 1725~1850M | 1 | 1.3:1 | >70dB@1600,1975MHz | 145x29x19 |
| BKLTZ-5625-5825M | 5625~5825M | 0.8 | 1.3:1 | >70dB@5520,5930MHz | 92x50x20 |
| BKLTZ-5600-5900M | 5600~5900M | 1 | 1.3:1 | >70dB@4500,8000MHz | 52x15x10 |
| BKLTZ-18.13-18.87G | 18.13~18.87G | 1 | 1.3:1 | >[email protected],19.5GHz | 60x13x8 |
