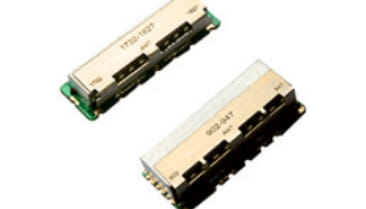

Dielectric Duplexers

Product: Dielectric Duplexers

Application: small base station, repeater, microwave communication, indoor distribution system, GSM, WCDMA, etc.

Show entries

Search:

Edit
Part Number	Center Freq.	BandWidth	I.L	Ripple	VSWR	Rejection Band	Power	Size	Application
	(f0)MHz	MHz	(dB) Max.	(dB) Max.	Max.	(dB) Min MHz	(W) Max.	(WHL)mm
DDP0810R827-872P015-015	827	15	2.5	1	1.5	50@865-880	10	4217.59.5	CN CDMA
	872	15	2.5	1	1.5	50@820-835
DDP0810R830-875P010-010	830	10	2.5	1	1.3	50@870-880	10	4217.59.5
	875	10	2.5	1	1.3	50@825-835
DDP0810R836-881P025-025	836	25	2.5	1.5	1.5	50@869-894	10	4217.59.5	KR CDMA
	881	25	2.5	1.5	1.5	50@824-849
DDP0410R836-881P025-025	836	25	4	2	1.5	45@869-894	5	30125.5
	881	25	4	2	1.5	45@824-849
DDP0810R897-942P024-024	897	24	2.5	1.5	1.5	50@930-955	10	4217.59.5	GSM
	924	24	2.5	1.5	1.5	50@885-910
DDP0410R897-942P024-024	897	24	4	2	1.5	50@930-955	5	30125.5
	942	24	4	2	1.5	50@885-910
DDP0810R900-945P030-030	900	30	3	1.5	1.5	45@930-955	10	4217.59.5
	945	30	3	1.5	1.5	45@885-915
DDP0410R900-945P030-030	900	30	4	2	1.5	45@930-955	5	30125.5
	945	30	4	2	1.5	45@885-915
DDP0810R902-947P024-024	902	24	2.5	1.5	1.5	50@925-959	10	4217.59.5
	947	24	2.5	1.5	1.5	50@890-914
DDP0410R902-947P024-024	902	24	4	2	1.5	50@925-959	5	30125.5
	947	24	4	2	1.5	50@890-914
DDP0810R912-957P006-006	912	6	2	1	1.3	55@954-960	10	4217.59.5
	957	6	2	1	1.3	55@899-905
DDP0410R912-957P006-006	912	6	2.5	1	1.5	55@954-960	5	30125.5
	957	6	2.5	1	1.5	55@899-905
DDS0410R1717-1812P015-015	1717	15	2.5	1.5	1.5	50@1805-1820	5	26.67.54.5	GSM 1800
	1812	15	2.5	1.5	1.5	50@1710-1725
DDP0810R1732-1827P045-045	1732	45	2.5	1	1.5	50@1805-1850	10	4217.59.5	DCS
	1827	45	2.5	1	1.5	50@1710-1755
DDP0410R1732-1827P045-045	1732	45	3	1.5	1.5	50@1805-1850	5	30125.5
	1827	45	3	1.5	1.5	50@1710-1755

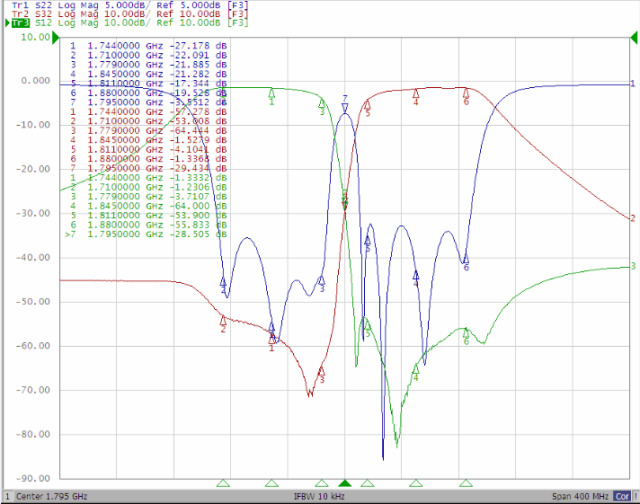

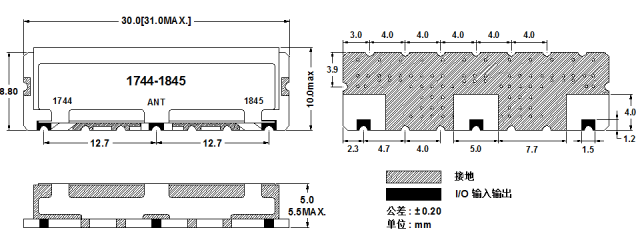

DDP0410R1744-1844P069-069	1744	69	5	3.5	1.5	50@1811-1880	5	308.85.5	DCS-1800
	1845	69	5	3.5	1.5	50@1710-1779
DDP1210R1747-1842P075-075	1747	75	2.8	2	1.5	45@1805-1880	20	67.318.314.5
	1842	75	2.8	2	1.5	45@1710-1785
DDP0810R1747-1842P075-075	1747	75	3.2	2.3	1.6	40@1805-1880	10	4217.59.5
	1842	75	3.2	2.3	1.6	40@1710-1785
DDP0410R1747-1842P075-075	1747	75	4	3	1.8	30@1805-1880	5	308.85.5
	1842	75	4	3	1.8	30@1710-1785

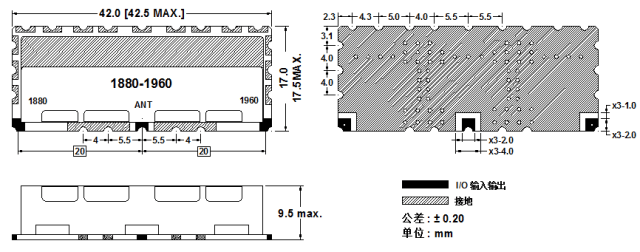

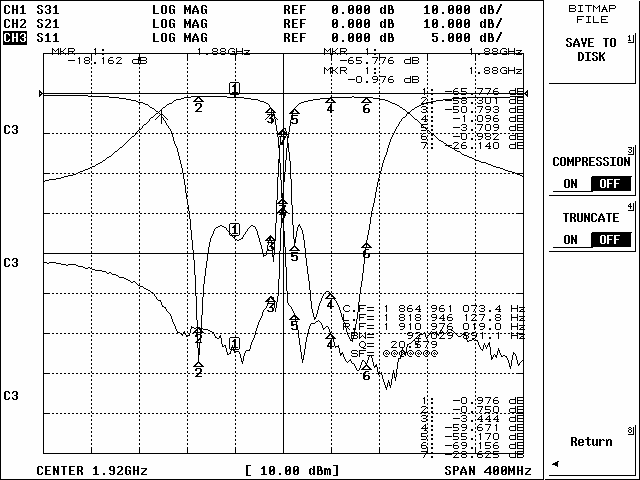

DDP0810R1880-1960P060-060	1880	60	3	2.2	1.5	40@1930-1990	10	4217.59.5	US PCS
	1960	60	3	2.2	1.5	40@1850-1880
DDP0410R1880-1960P060-060	1880	60	4	3	1.8	30@1930-1990	5	308.85.5
	1960	60	4	3	1.8	30@1850-1880
DDP0810R1947-2137P015-015	1947	15	2	1	1.3	55@2130-2145	10	4217.59.5	WCDMA
	2137	15	2	1	1.3	55@1940-1955
DDP0810R1950-2140P060-060	1950	60	2	1.5	1.3	55@2110-2170	10	4217.59.5
	2140	60	2	1.5	1.3	55@1920-1980
DDP0810P455-465P005-005	455	5	3.5	2	1.5	30@463-468	10	4222.59.5	Other Applicatioons
	465	5	3.5	2	1.5	30@453-458
DDP0810R3410-3510P030-030	3410	30	2.5	1	1.5	50@3495-3525	10	4222.59.5
	3510	30	2.5	1	1.5	50@3395-3425
DDP0604Q1227-1575P020-020	1227	20	1	0.5	1.5	40@1565-1585	3	26157.5
	1575	20	1	0.5	1.5	40@1217-1237
DDP0306Q1595-2492P040-040	1595	40	2.5	1	1.5	30@2472-2512	3	20144.5
	2492	40	2.5	1	1.5	40@1575-1615
DDP0306Q1268-1575P020-030	1268	20	2	0.5	1.5	40@1560-1590	3	20144.5
	1575	30	2	0.5	1.5	40@1258-1278
DDP0306Q1616-3492P040-040	1616	40	3	1	1.6	40@2472-2512	3	20144.5
	2492	40	3	1	1.6	40@1596-1636
DDP0509Q1268-1575P020-020	1268	20	3	1	1.5	55@1560-1590	3	47186.5
	1575	20	3	1	1.5	55@1258-1278

Showing 1 to 61 of 61 entries
