Dielectric filters

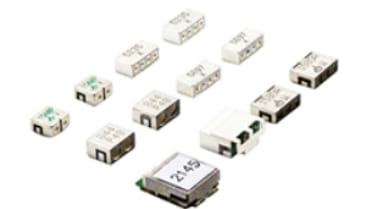

Product： Dielectric filters

Applications: routers, small base stations, UAV, 5G WIFI and other mobile communications, etc.

Details Description

Show entries

Search:

Edit
Part Number	Center Freq.	BandWidth	I.L	Ripple	VSWR	Out-of-band suppression	Power	Size
	(f0)MHz	MHz	(dB) Max.	(dB) Max.	Max.	(dB) Min MHz	(W) Max.	(WHL)mm
DFC0302R1561P004	1561	4	3	1	2	50@fo-100	3	5.85.52.8
DFC0302R1568P016	1568	16	4	1	2	18@fo+60;20@fo-60	3	5.85.32.8
DFC0303R1568P025	1568	25	3	1	2	30@±100	3	8.35.92.8

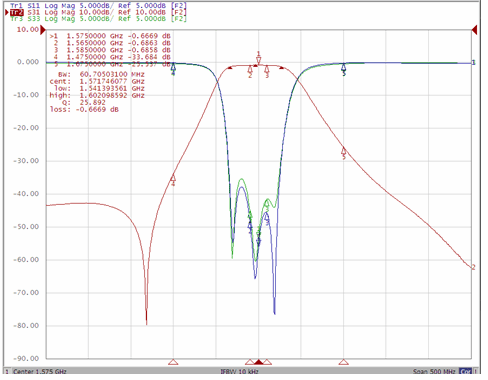

DFC0202R1575R030	1575	30	2.5	1	2	25@fo-100	3	4.54.52.0
DFC0302R1575P010	1575	10	3	1	2	15@fo+50;19@fo-50	3	5.85.22.8
DFC0302R1575P002	1575	2	3.5	1	2	18@fo+50;23@fo-50	3	5.85.22.8

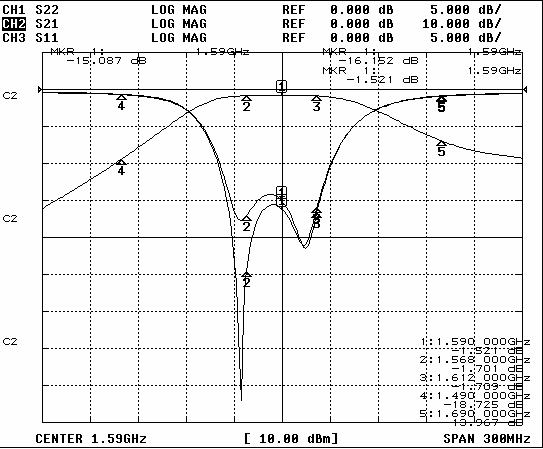

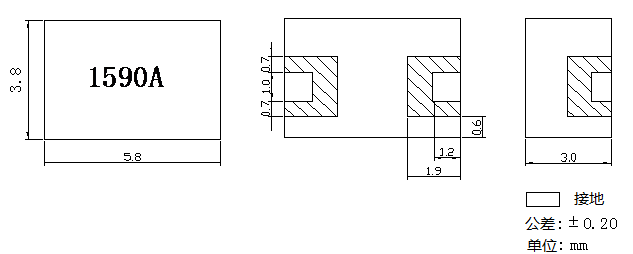

DFC0302R1590P044	1590	44	3	1	2	10@fo+100;15@fo-100	3	5.83.83.0
DFC0302R1595P032	1595	32	3	1	2	30@fo-100	3	5.85.02.8
DFC0303R1595P040	1595	40	2.5	1	2	40@fo-100	3	8.28.23.0
DFC0402R1595P010	1595	10	2	1	1.5	30@fo-100	3	7.48.03.8
DFC0402R2492P040	1595	10	2	1	1.5	30@fo±300	3	7.46.53.8
DFC0302R1616P010	1616	10	3.5	1	2	50@fo-100	3	5.85.02.8
DFC0302R1616P030	1616	30	2	1	2	25@fo-100	3	5.85.02.8
DFC0303R1616P010	1616	10	2.5	1	2	45@fo-100	3	8.27.53.0
DFC0303Q1762P045	1762	45	3	1	1.5	20@±80	3	8.27.23.0
DFC0303Q1857P045	1857	45	3	1	1.5	20@±80	3	8.27.23.0
DFC0203R1900P120	1900	120	2.5	1	2	40@1710-1745; 25@1745-1780	3	5.04.02.0

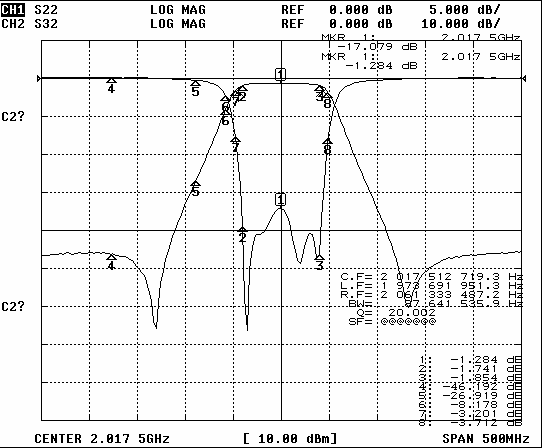

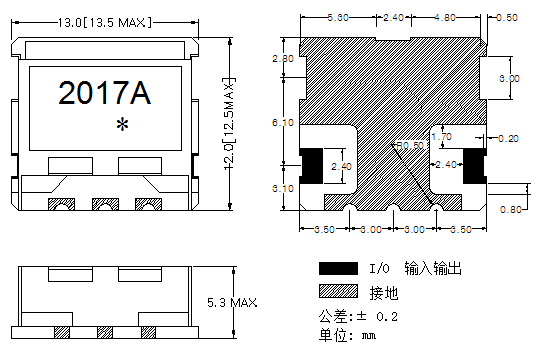

DFC0303R2017P077	2017	77	2.5	1	2	40@1-1720	3	6.05.83.0
DFC0203R2345R130	2345	130	3	1	1.5	30@fo-165	3	5.04.02.0
DFC0203R2345P180	2345	180	2.5	1	1.5	45@fo-320	3	5.04.02.0
DFC0406R2350P100	2350	100	2	1	1.5	40@fo±100	3	16.07.74.3
DFC0303R2492P010	2492	10	3	1	1.5	45@fo-100	3	8.26.53.0
DFC0303R3450P100	3450	100	2.5	1	1.5	12@fo+150	3	8.24.53.0
DFC0303R3550P100	3550	100	2.5	1	1.5	15@fo-150	3	8.24.53.0
DFS0506Q947P100	947	100	2	1	1.5	30@fo±100	3	19.08.85.2
DFS0403R1263P020	1236	20	2	1	1.5	45@fo±100	3	9.29.54.3
DFS0403R1263P020	1236	20	1	0.5	1.5	20@fo±100	3	9.29.54.3
DFS0403R1268P020	1268	20	1	0.5	1.5	20@fo±100	3	9.29.54.3
DFS0403R1268P020	1268	20	2	1	1.5	45@fo±100	3	9.29.54.3
DFS0403R1561P020	1561	20	2	1	1.5	45@fo±100	3	9.28.54.3
DFS0403R1561P020	1561	20	1	0.5	1.5	20@fo±100	3	9.28.54.3
DFS0403R1561P010	1561	10	1	0.5	1.5	20@fo±100	3	13.08.55.3

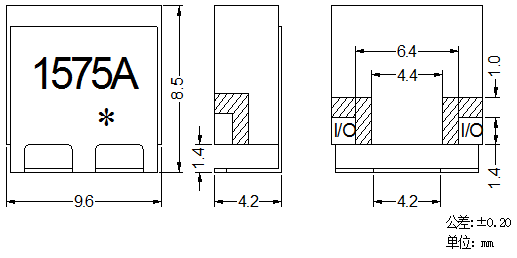

DFS0403R1575P020	1575	20	0.9	0.5	1.5	20@fo±100	3	9.68.54.2
DFS0403R1575P010	1575	10	2	1	1.5	45@fo±100	3	9.28.54.3
DFS0503R1575P010	1575	10	1	0.5	1.5	20@fo±100	3	13.08.55.3
DFS0403R1595P030	1595	30	3	1	1.5	35@fo±100	3	9.28.34.3
DFS0403R1616P020	1616	20	2	1	1.5	35@fo±100	3	9.28.04.3
DFS0403R1616P020	1616	20	1	0.5	1.5	20@fo±100	3	9.28.04.3
DFS0606R1616P010	1616	10	4.5	1	1.5	50@fp±30	3	28.28.58.3
DFS0403R2492P040	2492	40	1	0.5	1.5	20@fo±100	3	9.27.04.3
DFS0403R2492P050	2492	40	2	1	1.5	30@fo±100	3	9.27.04.3
DFS0403R2595P050	2595	50	2.5	1	1.5	40@fo±1175	3	9.27.54.2
DFS0403R2600P200	2600	200	2.5	1	1.5	30@fo±240	3	9.27.04.2
DFP0405Q340P020	340	20	3	1	1.5	40@fo±36	3	22.029.06.5
DFP0604Q390P016	390	16	3	1	1.5	15@fo±20	3	27.026.07.5
DFP0608Q410P020	410	20	3	1.5	1.5	50@fo±20	3	50.031.07.5
DFP0407Q480P030	480	30	4	0.8	1.5	30@fo±40	3	30.022.06.5
DFP0504Q500P008	500	8	3	1	1.5	10@fo±15	3	21.525.06.5
DFP0607Q550P052	550	52	3	1	1.5	70@fo±70	3	44.022.07.5
DFP0303R729P012	729	12	3	1	1.5	30@±100	3	9.512.05.0
DFP0404Q827P030	827	30	2.5	1	1.5	45@fo±50	3	13.012.06.0
DFP0304Q830P010	830	10	3	0.8	1.5	30@fo±50	3	13.015.54.5
DFP0606Q830P010	830	10	3	0.5	1.5	60@fo±45	3	38.023.07.5
DFP0808Q836P025	836	25	3	1	1.5	45@fo±32.5	3	33.416.09.0
DFP0304Q836P025	836	25	3	0.8	1.5	20@fo±32.5	3	13.015.54.5
DFP0402r860p020	860	20	3	1	1.5	12@fo+45	3	9.512.05.0
DFP0404Q872P015	872	15	2.5	1	1.5	45@fo±50	3	13.012.06.0
DFP0304Q875P010	875	10	3	0.8	1.5	30@fo±50	3	13.015.04.5
DFP0606q875P010	875	10	3	0.5	1.5	60@fo±45	3	38.023.07.5
DFP0609Q880P034	880	34	5	1	1.5	60@fo±48	3	56.020.07.5
DFP0808Q881P025	881	25	3	1	1.5	45@fo±32.5	3	33.416.09.0
DFP0304Q881P025	881	25	3	0.8	1.5	[email protected]	3	13.015.54.5
DFP0806Q897P024	897	24	3	1	1.5	45@fo±30	3	27.012.09.0
DFP0303Q897P035	897	35	2.5	1	1.8	6@fo±27.5	3	10.013.54.5
DFP0404Q900P030	900	30	3	1	1.5	40@fo±55	3	13.012.05.0

Showing 1 to 66 of 66 entries
