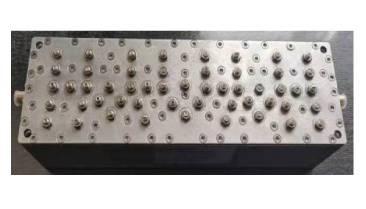

High power notch filter

Specification parameters

1.Frequency Range: 950-1010MHz,1050-1070MHz,1110-1224MHz

2.In-band Loss: <1.2dB

3.In-band Standing Wave: <1.5

4.In-band notch: >40 dB@1030±1MHz,>60 dB@1255±4MHz

5.Out Of Band Suppression: >70 dB @10-801MHz,>40 dB @1090±4MHz

6.Power: Peak value less than 1500W, average power less than 225W

7.Volume (mm³):171x61x45
