GPS Internal Antennas

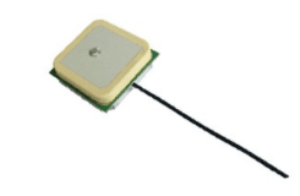

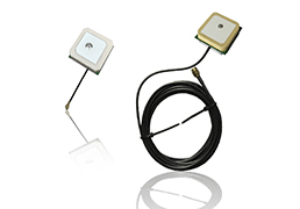

SS-GP2540P272

Show entries

Search:

Edit
Antenna Performance	Frequency	GPS-L1
	Impedance	50Ω
	Polarization	RHCP
	Axis Ratio	≦3dB
	Typical Gain	5.0dBi
	VSWR(Output)	<2.0
LNA	Gain	30±2dB
	Noise Figure	<1.2
	Operating Voltage	3-5VDC
	Operating Current	8-10mA
	In Band Flatness	±2dB
Structure	Outline Dimension	27×27×8.7mm
	Cable	RF1.13 or others
	Connector	IPEX or others
Operating Environment	Operating Temper.	-40℃~+85℃
	Storage Temper.	-55℃~+85℃
	Relative Humidity	95% non-condensing

Showing 1 to 16 of 16 entries

GPS Internal Antennas

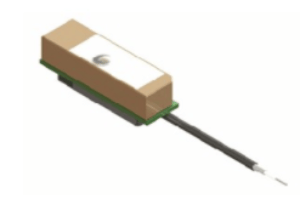

SS-GPI200640P273

Show entries

Search:

Edit
Antenna Performance	Frequency	GPS-L1
	Impedance	50Ω
	Polarization	Linear
	Typical Gain	-1.5dBi
	VSWR(Output)	<2.0
	Impedance bandwidth	>6MHz
LNA	Gain	22±2dB
	Noise Figure	<1.2
	Operating Voltage	3-5VDC
	Operating Current	4-4.5mA
	In Band Flatness	±2dB
Structure	Outline Dimension	20×6×7mm
	Cable	RF0.81 or others
	Connector	NC or others
Operating Environment	Operating Temper.	-40℃~+85℃
	Storage Temper.	-55℃~+85℃
	Relative Humidity	95% non-condensing

Showing 1 to 16 of 16 entries

Specifications

Show entries

Search:

Edit
Part Number	Size(mm)	Frequency	Axial Ratio(dB)	Antenna Gain(dBi)	Noise Figure(dB)	VSWR	LNA Gain (dB)	Output Impedance (Ω)	Operating Voltage (V)	Operating Current (mA)
SS-GPI2540P062	25×25×4	GPS-L1	3	2.5	2.2	2:1	26	50	3±0.5	11.5±1
SS-GPI2520P062	25×25×2	GPS-L1	3	1.5	2.2	2:1	26	50	3±0.5	11.5±1
SS-GPI2540P251	25×25×4	GPS-L1	3	2.5	1.1	2:1	19	50	3±0.5	4.5±1
SS-GPI2540P272	25×25×4	GPS-L1	3	2.5	1.2	2:1	30	50	3±0.5	8.5±1
SS-GPI2540P271	25×25×4	GPS-L1	3	2.5	1.2	2:1	32	50	3±0.5	8.5±1
SS-GPI2520P271	25×25×2	GPS-L1	3	1.5	1.2	2:1	32	50	3±0.5	8.5±1
SS-GPI2040P053	20×20×4	GPS-L1	3	2	1.5	2:1	26	50	3±0.5	10.0±1
SS-GPI2020P053	20×20×2	GPS-L1	3	1	1.5	2:1	26	50	3±0.5	10.0±1
SS-GPI1840P185	18×18×4	GPS-L1	3	2	1.2	2:1	32	50	3±0.5	8.5±1
SS-GPI1820P185	18×18×2	GPS-L1	3	1	1.2	2:1	32	50	3±0.5	8.5±1
SS-GPI1840P186	18×18×4	GPS-L1	3	2	1.2	2:1	19	50	3±0.5	4.2±1
SS-GPI1540P045	15×15×4	GPS-L1	3	1.5	1.5	2:1	16	50	3±0.5	4.5±1
SS-GPI1540P151	15×15×4	GPS-L1	3	1.5	1.5	2:1	42	50	3±0.5	8.5±1
SS-GPI1540P152	15×15×4	GPS-L1	3	1.5	1.2	2:1	22	50	3±0.5	4.2±1
