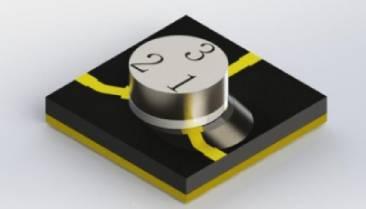

Microstrip Circulators

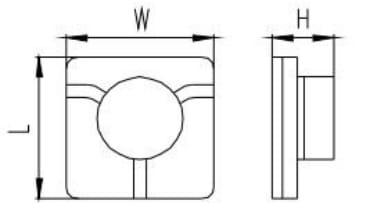

| Operating frequency (GHz) | Bandwidth (MHz) | Insertion Loss (dB) Max | Isolation (dB) Min | VSWR Max | Model series | Passing Power /Reflected Power (W) | Outline dimensions L*W*H (mm) | Operating temperature (℃) | Connection method |
| 1.8~2.5 | 100 | 0.4 | 20 | 1.25 | BKHHW13 26-** | 30 | 16*16*6.5 | -40-70 | Gold wire bonding |
| 200 | 0.5 | 18 | 1.25 | 30 | 16*16*6.5 | -40-70 | Gold wire bonding | ||
| 2.0~3.5 | 100 | 0.4 | 20 | 1.2 | BKHHW12 59-** | 20 | 14*14*5.5 | -40-70 | Gold wire bonding |
| 200 | 0.5 | 20 | 1.2 | 20 | 14*14*5.5 | -40-70 | Gold wire bonding | ||
| 2.7~3.5 | 300 | 0.4 | 20 | 1.25 | 20 | 14*14*5.5 | -40-70 | Gold wire bonding | |
| FULL | 0.5 | 18 | 1.3 | 20 | 14*14*5.5 | -40-70 | Gold wire bonding | ||
| 3.0~5.0 | 200 | 0.4 | 20 | 1.2 | BKHHW13 27-** | 20 | 12*12*5 | -55-85 | Gold wire bonding |
| 300 | 0.5 | 20 | 1.2 | 20 | 12*12*5 | -55-85 | Gold wire bonding | ||
| 4.0~6.0 | 300 | 0.4 | 20 | 1.25 | 20 | 12*12*5 | -55-85 | Gold wire bonding | |
| 500 | 0.5 | 18 | 1.3 | 20 | 12*12*5 | -55-85 | Gold wire bonding | ||
| 4.0~7.0 | 500 | 0.4 | 20 | 1.2 | BKHHW12 76-** | 10 | 9.5*9.5*4.5 | -55-85 | Gold wire bonding |
| 1000 | 0.5 | 20 | 1.2 | 10 | 9.5*9.5*4.5 | -55-85 | Gold wire bonding | ||
| 8.0~12.0 | 1000 | 0.4 | 20 | 1.2 | 10 | 9.5*9.5*4.5 | -55-85 | Gold wire bonding | |
| FULL | 0.5 | 20 | 1.3 | 10 | 9.5*9.5*4.5 | -55-85 | Gold wire bonding | ||
| 5.0~8.0 | 500 | 0.4 | 20 | 1.2 | BKHHW13 33-** | 10 | 8*8*4 | -55-85 | Gold wire bonding |
| 1000 | 0.5 | 20 | 1.2 | 10 | 8*8*4 | -55-85 | Gold wire bonding | ||
| 8.0~12.0 | 1000 | 0.4 | 20 | 1.2 | 10 | 8*8*4 | -55-85 | Gold wire bonding | |
| FULL | 0.5 | 20 | 1.3 | 10 | 8*8*4 | -55-85 | Gold wire bonding | ||
| 7.0~18.0 | 1000 | 0.4 | 20 | 1.2 | BKHHW12 57-* | 5/1 | 6*6*3.5 | -55-85 | Gold wire bonding |
| 2000 | 0.5 | 20 | 1.2 | 5/1 | 6*6*3.5 | -55-85 | Gold wire bonding | ||
| 4000 | 0.5 | 18 | 1.3 | 5/1 | 6*6*3.5 | -55-85 | Gold wire bonding | ||
| 15.0~36.0 | 1000 | 0.6 | 20 | 1.3 | BKHHW13 08-** | 5/1 | 5*6/5*3.5 | -55-85 | Gold wire bonding |
| 2000 | 0.8 | 18 | 1.4 | 5/1 | 5*6/5*3.5 | -55-85 | Gold wire bonding | ||
| 4000 | 1.2 | 14 | 1.5 | 5/1 | 5*6/5*3.5 | -55-85 | Gold wire bonding | ||
| 26.0~38.0 | 500 | 0.8 | 18 | 1.3 | BKHHW13 54-** | 5 | 4*4*3 | -55-85 | Gold wire bonding |
| 1000 | 1 | 16 | 1.4 | 5 | 4*4*3 | -55-85 | Gold wire bonding | ||
| 2000 | 1.2 | 16 | 1.4 | 5 | 4*4*3 | -55-85 | Gold wire bonding | ||
| 5.0~6.0 | FULL | 0.5 | 20 | 1.25 | BKHHW12 57-** | 5 | 5.5*6*3 | -55-85 | Gold wire bonding |
| 8.0~12.0 | FULL | 0.5 | 17 | 1.3 | BKHHW13 54-** | 5 | 4*4*3 | -55-85 | Gold wire bonding |
| 22.0~26.0 | FULL | 0.5 | 20 | 1.25 | BKHHW13 66-** | 5 | 3*3*3 | -55-85 | Gold wire bonding |
| Note: The above index data are typical values, and the test temperature is room temperature (25℃). | |||||||||
