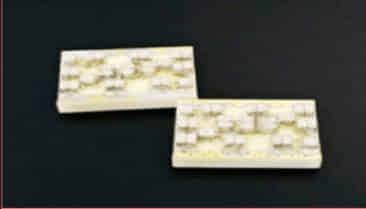

This product is a miniaturized LC filter, which has the characteristics of small size, light weight, easy integration, easy batch production, and high reliability.
Frequency coverage: 30MHz-1500MHz, widely used in harmonic suppression and Self-Noise improvement. The filter is realized by a lumped unit, its performance is not affected by the external box, and it is simple and convenient to use.
The miniaturized LC filter uses a multilayer ceramic process to integrate inductors and capacitors into the substrate. Compared with the traditional LC filter:
The volume is reduced by 70% ,the weight is reduced by 60%;
Simple structure , high reliability;
Short lead time for batch production and the cost is low.
| Model | IL0@f | Frequency Range | Attenuation | Size(mm) | Page |
|---|---|---|---|---|---|
| (dB) | (MHz) | (dB) | |||
| 9CBLP50+ | 1.3 | DC~50 | ≥40@65MHz | 18.8×11.3×4.0 | 31 |
| (Mini SCLF-45+) | |||||
| 9CBLP95+ | 1.5 | DC~95 | ≥40@130MHz | 18.6×11.0×4.0 | 32 |
| (Mini SXLP-95+) | |||||
| 7CBLP100-S2 | 2 | DC~100 | ≥40@140MHz | 14×10.0×4.5 | 33 |
| 9CBLP120+ | 1.5 | DC~120 | ≥40@165MHz | 18.6×11.0×4.0 | - |
| 9CBLP450-S4 | 1.5 | DC~450 | ≥40@580MHz | 12×8.0×4.5 | - |
| 9CBLP530-S4 | 1.5 | DC~530 | ≥40@660MHz | 12×8.0×4.5 | - |
| 9CBLP1100-S4 | 1.4 | DC~1100 | ≥40@1450MHz | 12×8.0×4.5 | 34 |
| 9CBLP1150-S4 | 1.8 | DC~1150 | ≥40@1550MHz | 12×8.0×4.5 | 35 |
| 9CBLP1120-S4 | 1.5 | DC~1120 | ≥30@1430MHz | 12×8.0×4.5 | - |
| 9CBLP1250-S4 | 1.8 | DC~1250 | ≥40@1650MHz | 12×8.0×4.5 | 36 |
