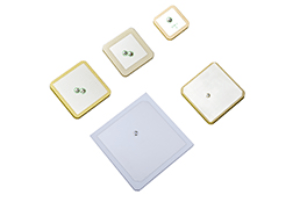

Series： RF Dielectric Antennas
Application：readers
Specifications
| Part Number | Size（mm） | Norminal Frequency（MHz） | -10dB Bandwidth (MHz)min. | VSWR （in BW）max. | Ground Plane Size（mm） | Application |
|---|---|---|---|---|---|---|
| DAE915R7880A | 78.5*78.5 | 902-928 | 26.0 | 2.0 | 95*95 | RFID/ETC/DSRC |
| DAE915R6150A | 61.5*61.5 | 902-928 | 8.0 | 2.0 | 95*95 | |
| DAE915R4060R | 40*40 | 902-928 | 5.0 | 2.0 | 70*70 | |
| DAE915R3540C | 35*35 | 902-928 | 3.0 | 2.0 | 40*40 | |
| DAE915R2540J | 25*25 | 902-928 | 2.0 | 2.0 | 40*40 | |
| DAE915R1840G | 18*18 | 902-928 | 2.0 | 2.0 | 40*40 | |
| DAE5810R1330C | 13*13 | 5725-5850 | 400.0 | 2.0 | 40*40 | |
| DAB915X6050A | 60*60 | 902-928 | - | - | 70*70 | |
| DAB915X4050A | 40*40 | 902-928 | - | - | 50*50 | |
| DAB915X3540A | 35*35 | 860-960 | - | - | 50*50 |
Note: Suitable for 868MHz as well
