Flange Attenuators

High-Power Flange Attenuators

General Specifications

RF microWave application
Impedance: 50Ω
Power:5~200W
Attenuation Value:0-30dB
Attenuation Tolerance: 0~10dB±0.6dB
11~20dB±0.8dB
21~30dB±1dB
Frequency: DC~4GHz (VSWR≤1.2)
Temperature Range:-55℃~125℃
Default Substrate Material:BeO
RoHS compliant
Standard:Q/20275660-7.14-2020
We can provide the customized product according to the customer's requirements
Standard Lead length: L=5±0.5mm

Order Information

Product Reference

Power(W)	Model	Frequency(GHz)	Attenuation Value	Dimensions(mm)

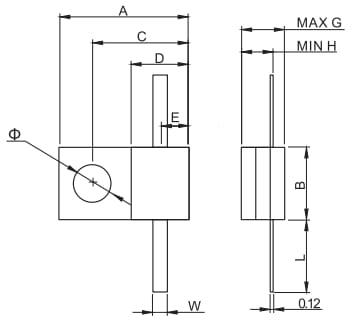

Power(W)	Model	Frequency(GHz)	Attenuation Value	A±0.2	B±0.2	C±0.15	D	H	G	W±0.2	Φ
10	RIG-F	4	0dB~30dB	16	6	13	6	2.2	3.2	1	2.2
20	RIG-F	4	0dB~30dB	16	6	13	6	2.2	3.2	1	2.2
30	RIG-F	4	0dB~30dB	16	6	13	6	2.2	3.2	1	2.2
30	RIG-F7	4	0dB~30dB	15	6	11	6	2	3	1	2.2
60	RIG-F	4	0dB~15dB	16	6	13	6	2.2	3.2	1	2.2
60	RIG-F7	4	0dB~15dB	15	6	11	6	2	3	1	2.2
60	RIG-F	3	16dB~30dB	16	6	13	9	2.7	3.7	1	2.2
60	RIG-F5	3	21dB~30dB	20	6	14	9	3.2	4.2	1	3.2
60	RIG-F6	3	21dB~30dB	18	6	14	9	2.7	4.7	1	2.2
100	RIG-F	3	0dB~20dB	16	6	13	9	2.7	3.7	1	2.2
100	RIG-F5	3	0dB~20dB	20	6	14	9	3.2	4.2	1	3.2
100	RIG-F6	3	0dB~20dB	18	6	14	9	2.7	3.7	1	2.2
100	RIG-F8	2	30dB	25	10	19	10	3.7	3.7	1	3.5
150	RIG-F8	2	0dB~10dB	25	10	19	10	3.7	4.7	1	3.5
200	RIG-F8	2	0dB~10dB	25	10	19	12	4.2	5.2	1	3.5

Product Reference

E=(1/2)*D

Power(W)	Model	Frequency(GHz)	Attenuation Value	Dimensions(mm)

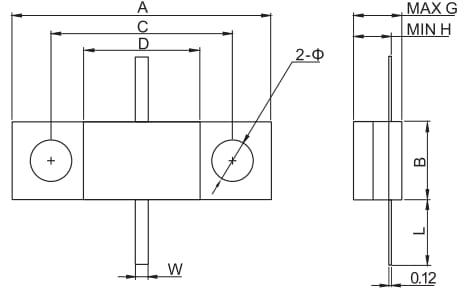

Power(W)	Model	Frequency(GHz)	Attenuation Value	A±0.2	B±0.2	C±0.15	D	H	G	W±0.2	Φ
5	RIG-F	4	0dB~30dB	11	6	8.5	6	2	3	1	2.2
30	RIG-F4	4	0dB~30dB	11	6	8.5	6	2	3	1	2.2
60	RIG-F4	4	0dB~15dB	11	6	8.5	6	2	3.2	1	2.2
