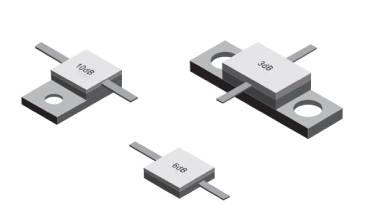

Tab and Cover Attenuators
RIG-RF Attenuators (Flangeless Double-Lead Attenuators)
General Specifications
Impedance:50Ω
Power:5~200W Attenuation Value:0-30dB Attenuation Tolerance: 0~10dB±0.6dB 11~20dB±0.8dB 21~30dB±1dB Frequency: DC~4GHz (VSWR≤1.2) Temperature Range:-55℃~125℃ Default Substrate Material:BeO RoHS compliant Standard:Q/20275660-7.14-2020 We can provide the customized product according to the customer's requirements Standard Lead length: L=5±0.5mm
|  |

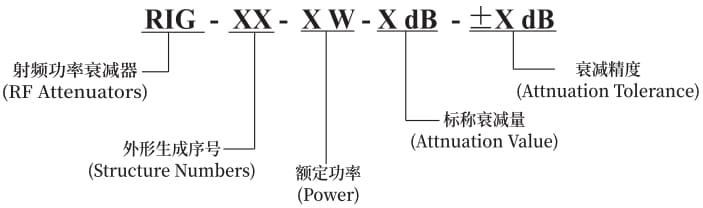

Order Information
Product Reference

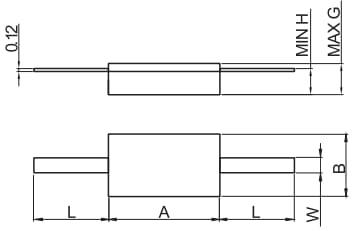

| Power(W) | Model | Frequency(GHz) | Attenuation Value | Dimensions(mm) |
| A±0.2 | B±0.2 | C±0.15 | D | H | G | W±0.2 | Φ |
| 10 | RIG-F | 4 | 0dB~30dB | 16 | 6 | 13 | 6 | 0.2 | 3.2 | 1 | 2.2 |
| 20 | RIG-F | 4 | 0dB~30dB | 16 | 6 | 13 | 6 | 2.2 | 3.2 | 1 | 2.2 |
| 30 | RIG-F | 4 | 0dB~30dB | 16 | 6 | 13 | 6 | 2.2 | 3.2 | 1 | 2.2 |
| 30 | RIG-F7 | 4 | 0dB~30dB | 15 | 6 | 11 | 6 | 2 | 3 | 1 | 2.2 |
| 60 | RIG-F | 4 | 0dB~15dB | 16 | 6 | 13 | 6 | 2.2 | 3.2 | 1 | 2.2 |
| 60 | RIG-F7 | 4 | 0dB~15dB | 15 | 6 | 11 | 6 | 2 | 3 | 1 | 2.2 |
| 60 | RIG-F | 3 | 16dB~30dB | 16 | 6 | 13 | 9 | 2.7 | 3.7 | 1 | 2.2 |
| 60 | RIG-F5 | 3 | 21dB~30dB | 20 | 6 | 14 | 9 | 3.2 | 4.2 | 1 | 3.2 |
| 60 | RIG-F6 | 3 | 21dB~30dB | 18 | 6 | 14 | 9 | 2.7 | 3.7 | 1 | 2.2 |
| 100 | RIG-F | 3 | 0dB~20dB | 16 | 6 | 13 | 9 | 2.7 | 3.7 | 1 | 2.2 |
| 100 | RIG-F5 | 3 | 0dB~20dB | 20 | 6 | 14 | 9 | 3.2 | 4.2 | 1 | 3.2 |
| 100 | RIG-F6 | 3 | 0dB~20dB | 18 | 6 | 14 | 9 | 2.7 | 3.7 | 1 | 2.2 |
| 100 | RIG-F8 | 2 | 30dB | 25 | 10 | 19 | 10 | 3.7 | 4.7 | 1 | 3.5 |
| 150 | RIG-F8 | 2 | 0dB~10dB | 25 | 10 | 19 | 10 | 3.7 | 4.7 | 1 | 3.5 |
| 200 | RIG-F8 | 2 | 0dB~10dB | 25 | 10 | 19 | 12 | 4.2 | 5.2 | 1 | 3.5 |
