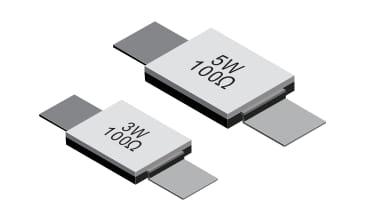

● Power : 1~20 Watts ● Standard Resistance): 100 or 50 Ohm ● Resistance Tolerance): 土1%、士2%、土5%(default) ● Temperature Coefficient): ≤土300PPM/°C . ● Temperature Range): -55°C~125°C ● Default Substrate Material): BeO ● RoHS compliant) ● Standard : Q/20275660-7.1-2019 |  |
|
|

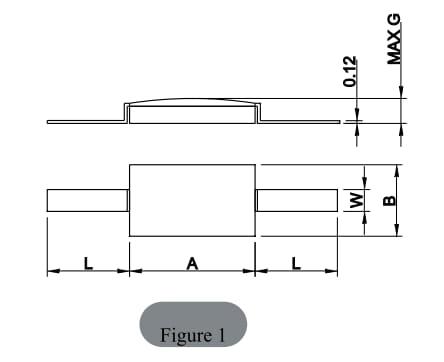

| Power | Model | Figure | Dimensions (mm) | |||||
| W | A±0.2 | B±0.2 | H(min) | G(max) | W±0.2 | L±0.5 | ||
| 1 | RIG1 | 1 | 6 | 4 | N/A | 2 | 3 | 5 |
| 2 | RIG1 | 1 | 6 | 5 | N/A | 2 | 3 | 5 |
| 3 | RIG1 | 1 | 8 | 7 | N/A | 2 | 4 | 5 |
| 5 | RIG1 | 1 | 10 | 8 | N/A | 2 | 5 | 5 |
| 5 | RIGle | 1 | 6.5 | 3 | N/A | 2 | 1.5 | 5 |
| 5 | RIG1f | 2 | 5 | 2 | 1.1 | 2 | 1 | 5 |
| 10 | RIG1 | 1 | 4 | 4 | N/A | 2 | 2.5 | 5 |
| 10 | RIG1s | 2 | 10 | 8 | 1.1 | 2 | 5 | 5 |
| 5 | RIGlc | 2 | 5 | 8 | 1.1 | 2 | 1.5 | 5 |
| 10 | RIG1c | 2 | 6 | 9 | 1.1 | 2 | 2 | 5 |
