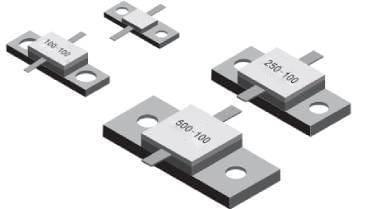

RF Flanged Resistors

RIG2/RFG-RF Double-leads Double-holes Flanged Resistors

General Specifications

Power: 5~500Watts
Standard Resistance: 100 Ohm
Resistance Tolerance: ±1%、±2%、±5%(default)
Temperature Coefficient: ≤±300PPM/°C //≤±250PPM/°C
Temperature Range : -55°C~125°C/-55°C~150°C
Default Substrate Material: BeO
RoHS compliant
Standard:Q/20275660-7.2-2019
Q/20275660-7.20-2019 (It is formulated in accordance with GJB8263-2014)
We can provide the customized product according to the customer's requirements.
Default Leads length:L=5±0.5m

2 (1).jpg

Order Information

Product Reference

Power(W)	Capacitance(≤pF)	Model	Dimensions(mm)

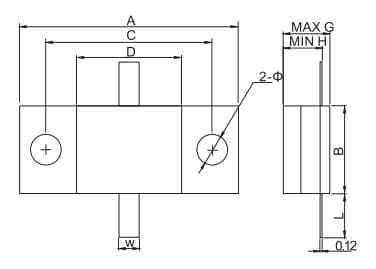

Power(W)	Capacitance(≤pF)	Model	A±0.2	B±0.2	C±0.15	D	H(min)	G(max)	W±0.2	Φ
5	1.3	RIG2-3E	14	4	9	4	2.2	3.2	1	2.2
10	1.3	RIG2-3E	14	4	9	4	2.2	3.2	1	2.2
10	1.6	RIG2-3E4	13	5	9.5	4	2.2	3.2	1	2.2
10	1.3	RIG2-3E6	11	4	7.5	4	1.5	2.5	1	2.2
18	1.3	RIG2-3E	14	4	9	5	2.2	3.2	1	2.2
30	3.7	RIG2-3D	20	6	14	9	3.2	4.2	2.1	3.2
60	3	RIG2-3D	16	6	13	6.4	1.7	2.7	1	2.2
100	2.7	RIG2-3D1	20	6	14	9	3.2	4.2	2.3	3.2
150	3.7	RIG2-3D1	21	8	15	10	3.7	4.7	2.3	3.2
150	3.7	RIG2-3D2	23	8	18	10	3.7	4.7	1.5	2.8
150	3.5	RIG2-3D4	22	9.5	14	6.5	3.2	4.2	1	4
250	8	RIG2-3D2	25	12	19	10	4.2	5.2	2.3	3.2
250	6.7	RIG2-3D3	25	10	18.5	12	4.2	5.2	3	3.2
250	6.7	RIG2-3D31	25	10	18.5	12	4.2	5.2	3	3.7
250	6	RIG2-3D32	24.8	9.5	18.4	9.5	4.2	5.2	1.8	3.5
250	5	RIG2-3D33	25	10	18.5	12	4.7	5.7	2.3	3.2
400	7	RIG2-2C3	32	13	22.2	12.7	4.7	5.7	1.5	4
500	5.5	RIG2-2C3	32	13	22.2	12.7	4.7	5.7	1.5	4
