High Power Flanged Resistors

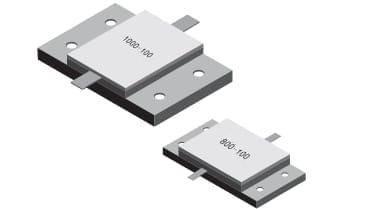

RIG2/RFG-RF Double-leads Four-holes Flanged Resistors
General Specifications
Power: 400~1200Watts Standard Resistance: 100 Ohm Resistance Tolerance: ±1%、±2%、±5%(default) Temperature Coefficient: ≤±300PPM/°C Temperature Range : -55°C~125°C Default Substrate Material: BeO RoHS compliant Standard:Q/20275660-7.2-2019 We can provide the customized product according to the customer's requirements. Default Leads length:L=10±0.5m
|  |
Order Information
Product Reference
| Power(W) | Capacitance(≤pF) | Model | Dimensions(mm) |

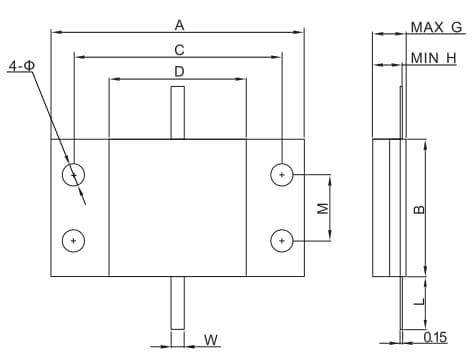

| A±0.2 | B±0.2 | C±0.15 | M±0.15 | D | H(min) | G(max) | W±0.2 | Φ |
| 400 | 6.1 | RIG2-2C | 30 | 16 | 25 | 9 | 18.5 | 6.2 | 7.2 | 2.5 | 3.2 |
| 400 | 14.5 | RIG2-2C1 | 48 | 26 | 39.5 | 12.5 | 26 | 5.2 | 6.7 | 2.5 | 4.2 |
| 400 | 10 | RIG2-2C2 | 48 | 26 | 39.5 | 12.5 | 26 | 6.2 | 7.7 | 2.5 | 4.2 |
| 800 | 10 | RIG2-4C | 48 | 26 | 39.5 | 12.5 | 32 | 8.2 | 9.7 | 2.5 | 4.2 |
| 800 | 10 | RIG2-4C1 | 48 | 26 | 39.5 | 12.5 | 32 | 6.2 | 7.7 | 2.5 | 4.2 |
| 800 | 15 | RIG2-4C3 | 48.3 | 26.4 | 39.4 | 12.7 | 26 | 5.2 | 6.7 | 4 | 4.5 |
| 1000 | 27 | RIG2-4C | 60 | 40 | 45 | 20 | 30 | 8.2 | 9.7 | 6 | 4.2 |
| 1000 | 27 | RIG2-4C1 | 57 | 30 | 50 | 12 | 40 | 8.2 | 9.7 | 6 | 4.2 |
| 1000 | 15 | RIG2-4C2 | 60 | 40 | 45 | 20 | 30 | 11.2 | 12.7 | 6 | 4.2 |
| 1200 | 27 | RIG2-4C | 60 | 40 | 45 | 20 | 30 | 8.2 | 9.7 | 6 | 4.2 |
| 1200 | 27 | RIG2-4C1 | 57 | 30 | 50 | 12 | 40 | 8.2 | 9.7 | 6 | 4.2
|
