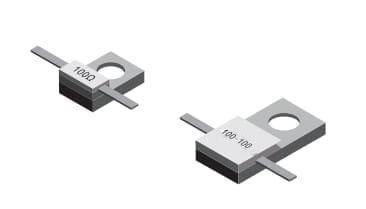

Single-hole Flanged Resistors

RIG2/RFG-RF Double-leads Single-hole Flanged Resistors

General Specifications

Power: 5~100Watts
Standard Resistance: 100 Ohm
Resistance Tolerance: ±1%、±2%、±5%(default)
Temperature Coefficient: ≤±300PPM/°C //≤±250PPM/°C
Temperature Range : -55°C~125°C/-55°C~150°C
Default Substrate Material: BeO
RoHS compliant
Standard:Q/20275660-7.2-2019
Q/20275660-7.20-2019 (It is formulated in accordance with GJB8263-2014)
We can provide the customized product according to the customer's requirements.
Default Leads length:L=5±0.5m

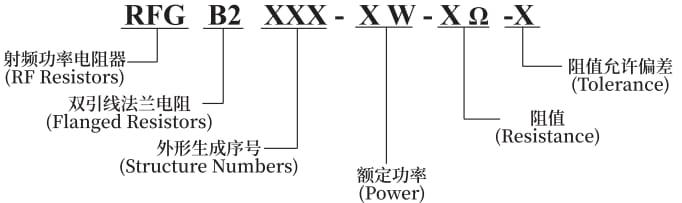

Order Information

Product Reference

Power(W)	Capacitance(≤pF)	Model	Dimensions(mm)

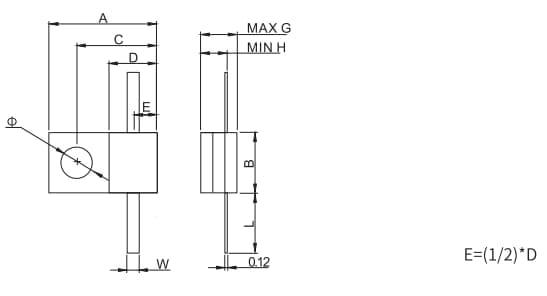

Power(W)	Capacitance(≤pF)	Model	A±0.2	B±0.2	C±0.15	D	H(min)	G(max)	W±0.2	Φ
5	1	RIG2-5E	7.7	5	5.2	2.5	2	3	1	3
10	1	RIG2-5E	7.7	5	5.2	2.5	2.7	3.7	1	3
18	1	RIG2-5E	9	5	6.7	2.5	2.7	3.7	1	2.6
20	1.1	RIG2-1D	9	5	6.7	4	3.2	4.2	1	2.6
20	1	RIG2-5E	9	5	6.7	2.5	2.7	3.7	1	2.6
20	1	RIG2-5E2	7.7	5	5.2	2.5	2	3	1	3
30	2.6	RIG2-1D	13	6.4	10	6.4	2.7	3.7	1.5	3.2
30	0.7	RIG2-1D2	9	4	6.5	4	3.2	4.2	1.5	2.2
30	1	RIG2-5E	7.7	5	5.2	2.5	2.7	3.7	1	3
40	2	RIG2-1D	14.5	6.4	11	6.4	3.2	4.2	1.5	3.5
40	2.6	RIG2-1D1	12.7	6.5	9.6	6.4	2.7	3.7	1.5	3.5
50	2	RIG2-1D	13	6.4	10	6.4	3.2	4.2	1.5	3.2
50	1	RIG2-1D1	13	6.4	10	6.4	4.7	5.7	1.5	3.2
60	2	RIG2-1D	13	6.4	10	6.4	3.2	4.2	1.5	3.2
100	3	RIG2-1D	13	6.4	10	6.4	3.2	4.2	1.5	3.2
100	3	RIG2-1D1	14.5	6.4	11	6.4	3.2	4.2	1.5	3.5
100	1.1	RIG2-1D2	13	6.4	10	6.4	4.7	5.7	1.5	3.2
