Tab & Cover Terminations

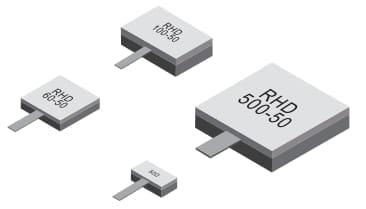

RIG2/RFG-RF Tab & Cover Terminations

General Specifications

Power: 10~600Watts
Frequency: DC~18GHz
Standard Resistance: 50 Ohm
Resistance Tolerance: ±1%、±2%、±5%(default)
Temperature Coefficient: ≤±300PPM/°C //≤±250PPM/°C
Temperature Range : -55°C~125°C/-55°C~150°C
Default Substrate Material: BeO
RoHS compliant
Standard:Q/20275660-7.2-2019
Q/20275660-7.20-2019 (It is formulated in accordance with GJB8263-2014)
We can provide the customized product according to the customer's requirements.

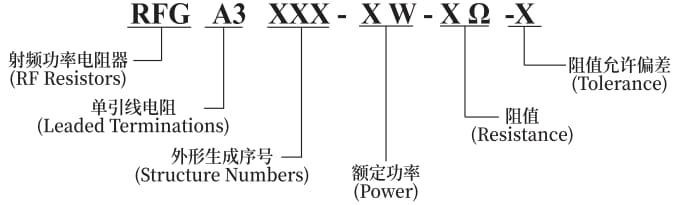

Order Information

Product Reference

Power(W)	Frequency(GHz)	(VSWR≤)	Model	Dimensions(mm)

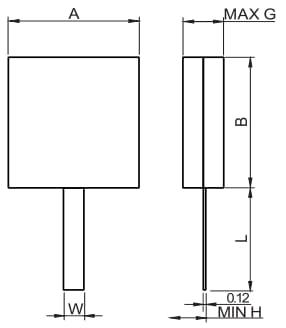

Power(W)	Frequency(GHz)	(VSWR≤)	Model	A±0.2	B±0.2	H(min)	G(max)	W±0.2	L±0.5
10	DC-6	1.2	RIG2-B0	4	4	1.1	2	1	5
10	DC-5	1.2	RIG2-B2	2.5	5	1.1	2	1	5
10	DC-12	1.3	RIG2-B 19	5	2.5	0.8	1.7	1	5
10	DC-18	1.4	RIG2-B22	2.5	1.5	0.8	1.7	0.6	3
20	DC-5	1.2	RIG2-B2	2.5	5	1.1	2	1	5
20	DC-12	1.3	RIG2-B 19	5	2.5	0.8	1.7	1	5
20	DC-6	1.2	RIG2-B2a	5	2.5	1.1	2	1	3
30	DC-6	1.2	RIG2-B20	6	4	1.1	2	1	5
40	DC-6	1.2	RIG2-B20	6	4	1.1	2	0.7	5
50	DC-6	1.2	RIG2-B 15	7	3	1.1	2	0.7	5
60	DC-6	1.2	RIG2-B5	6.4	6.4	1.1	2	1	5
100	DC-4.5	1.2	RIG2-B8	10	8	1.6	2.5	1.5	5
100	DC-4	1.2	RIG2-B8a	6.4	6.4	1.1	2	1	5
100	DC-4	1.25	RIG2-B18	8	5	1.1	2	1	5
100	DC-4	1.2	RIG2-B7	9	6	1.6	2.5	1	5
150	DC-4.5	1.2	RIG2-B8	10	8	1.6	2.5	1.5	5
150	DC-3	1.2	RIG2-B9	6.5	9.5	1.6	2.5	1	5
150	DC-3	1.2	RIG2-B9a	6.35	9.5	1.1	2	1	5
150	DC-5	1.2	RIG2-B9b	9.5	6.5	1.6	2.5	1.5	5
200	DC-4	1.2	RIG2-B13	12	7	1.6	2.5	1	5
200	DC-5	1.2	RIG2-B9b	9.5	6.5	1.6	2.5	1.5	5
250	DC-2	1.2	RIG2-B10	12	10	1.6	2.5	2.5	5
500	DC-2	1.2	RIG2-B22	12.7	12.7	2.1	3	2.5	5
10	DC-14	1.3	RFGA301	5	2.5	0.8	1.7	1	5
10	DC-6	1.2	RFGA302	2.5	3	0.8	1.7	1	5
10	DC-12	1.3	RFGA303	3	2.5	0.8	1.7	1	5
10	DC-6	1.2	RFGA304	5	2.5	1.1	2	1	5
10	DC-18	1.4	RFGA305	1.5	2.5	0.6	1.5	0.4	3
10	DC-18	1.4	RFGA307	2.5	1.5	0.8	1.7	0.4	3
10	DC-18	1. .4	RFGA309	2.5	1.5	0.6	1.5	0.4	3
15	DC-14	1.3	RFGA301	5	2.5	0.8	1.7	1	5
15	DC-6	1.2	RFGA302	2	3	0.8	1.7	0.8	4
15	DC-18	1.4	RFGA307	2.5	1.5	0.8	1.7	0.4	3
20	DC-8	1.3	RFGA301	4	3	1.1	2	1	5
30	DC-6	.1.2	RFGA301	5	2.5	0.8	1.7	1	5
30	DC-6	1.2	RFGA302	4	5	1.1	2	1	5
30	DC-18	1.45	RFGA306	3	2.5	0.8	1.5	0.6	3
30	DC-7	1.2	RFGA307	2.5	5	0.8	1.7	1	5
40	DC-8	1.3	RFGA301	4	4	1.1	2	1	5
40	DC-4	1.2	RFGA302	6	4	1.1	2	1	5
50	DC-10	1.35	RFGA304	7	3	1.1	2	1	5
60	DC-9	1.3	RFGA301	6.4	6.4	1.1	2	1	5
60	DC-10	1.35	RFGA302	7	3.7	1.1	2	1	5
100	DC-5	1.2	RFGA302	9	6	1.1	2	1.5	5
100	DC-6	1.2	RFGA303	9	6	1.6	2.5	1	5
100	DC- 12	1.3	RFGA306	6.4	6.4	1.6	2.5	1.5	5
150	DC-4	1.2	RFGA301	12	6	1.6	2.5	1.2	5
150	DC-4	1.2	RFGA302	9.5	6.35	1.1	2	0.8	5
150	DC-6	1.2	RFGA303	9	6	1.6	2.5	1	5
250	DC-2	1.2	RFGA301	12	9.5	1.6	2.5	2	5
250	DC-4	1.2	RFGA302	12	10	2.1	3	2.5	5
250	DC-8	1.3	RFGA305	12	10	2.1	3	2.3	5
300	DC-4	1.2	RFGA301	12.7	10	2.1	3	1.5	5
500	DC-3.5	1.25	RFGA301	18.5	16	3.1	4	2.5	5
600	DC-1	1.2	RFGA302	20	10	2.1	3	3	5
