RF Flanged Terminations

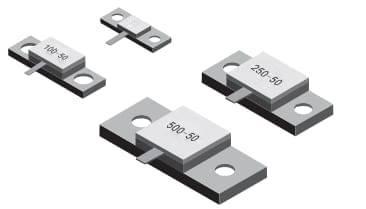

RIG2/RFG-RF Single-lead Double-holes Flanged Terminations

General Specifications

Power: 5~500Watts
Frequency: DC~12GHz
Standard Resistance: 50 Ohm
Resistance Tolerance: ±1%、±2%、±5%(default)
Temperature Coefficient: ≤±300PPM/°C //≤±250PPM/°C
Temperature Range : -55°C~125°C/-55°C~150°C
Default Substrate Material: BeO
RoHS compliant
Standard:Q/20275660-7.2-2019
Q/20275660-7.20-2019 (It is formulated in accordance with GJB8263-2014)
We can provide the customized product according to the customer's requirements.

Order Information

Product Reference

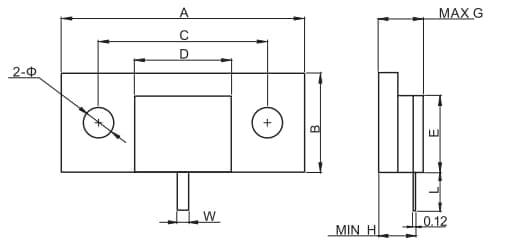

Wide flange

Power(W)	Frequency(GHz)	(VSWR≤)	Model	Dimensions(mm)
Power(W)	Frequency(GHz)	(VSWR≤)	Model	A±0.2	B±0.2	C±0.15	D	H(min)	G(max)	W±0.2	Φ	E
10	DC-6	1.2	RIG2-2Ea	14	5	10	4	2.2	3.2	1	2.2	4
300	DC-3.5	1.25	RIG2-1C3	32	13	22.2	12.7	4.7	5.7	1.5	4	10
350	DC-3.5	1.25	RIG2-1C3	32	13	22.2	12.7	4.7	5.7	1.5	4	10
30	DC-6	1.2	RFGB1M01	14	5	10	6	2.2	3.2	1	2.2	4
150	DC-5	1.2	RFGB1M01	21	8	15	9.5	3.7	4.7	1.5	3.2	6.5

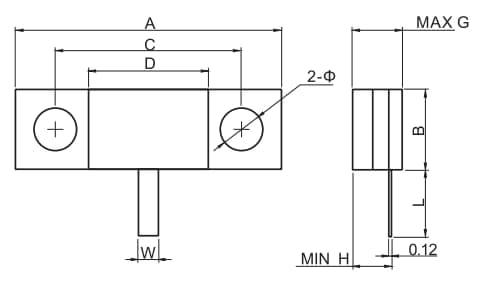

Standard flange

Power(W)	Frequency(GHz)	(VSWR≤)	Model	Dimensions(mm)
Power(W)	Frequency(GHz)	(VSWR≤)	Model	A±0.2	B±0.2	C±0.15	D	H(min)	G(max)	W±0.2	Φ
5	DC-6	1.2	RIG2-2E	14	5	10	4	2.2	3.2	1	2.2
5	DC-6	1.2	RIG2-2E1	13	4	9	4	2	3	1	2.2
5	DC-6	1.2	RIG2-2E6a	11	4	7.5	4	1.5	2.5	1	2.2
10	DC-6	1.2	RIG2-2E	14	4	9	4	2.2	3.2	1	2.2
10	DC-6	1.2	RIG2-2E6	11	4	7.5	4	1.5	2.5	1	2.2
10	DC-12	1.3	RIG2-2E6c	11	2.6	8.5	5	1.2	2.2	1	1.8
10	DC-6	1.2	RIG2-2E8	14.5	4	11	4	1.7	2.7	1	2.2
10	DC-6	1.2	RIG2-2E11	13	4	9	4	2	3	1	2.2
18	DC-6	1.2	RIG2-2E	14	4	9	4	2.2	3.2	1	2.2
20	DC-6	1.2	RIG2-2E11	13	4	9	4	2	3	1	2.2
20	DC-12	1.3	RIG2-2E6c	11	2.6	8.5	5	1.2	2.2	1	1.8
20	DC-4	1.2	RIG2-2E10	13	5	9.5	6	1.7	2.7	1	2.2
60	DC-3	1.2	RIG2-2D	16	6	13	6.4	1.7	2.7	1	2.2
60	DC-5	1.2	RIG2-2D4	15	6.4	11	6.4	2	3	1	2.2
60	DC-9	1.3	RIG2-Z	15	6.4	11	6.4	2	3	1	2.2
75	DC-4	1.2	RIG2-Z	20	6	14	9	3.2	4.2	1	3.2
75	DC-4	1.2	RIG2-Z1	19	6	14	9	2.9	3.9	1	2.5
100	DC-4	1.2	RIG2-2D1	20	6	14	9	3.2	4.2	1.5	3.2
100	DC-5	1.2	RIG2-2D4	20	6	14	9	2.7	3.7	1.5	3.2
100	DC-3	1.2	RIG2-2D43	24.8	9.5	18.4	9.5	4.2	5.2	1.5	3.5
100	DC-6	1.3	RIG2-Z	20	6	14	9	3.2	4.2	1	3.2
100	DC-4	1.2	RIG2-Z1	19	6	14	9	2.2	3.2	1	2.5
150	DC-4.5	1.2	RIG2-2D1	21	8	15	10	3.7	4.7	1.5	3.2
150	DC-4.5	1.2	RIG2-2D2	23	8	18	10	3.7	4.7	1.5	2.8
150	DC-3	1.2	RIG2-2D4	22	9.5	14	6.5	3.2	4.2	1	4
250	DC-3	1.2	RIG2-2D4	25	10	19	12	4.2	5.2	2.3	3.5
250	DC-3	1.2	RIG2-2D41	25	10	19	12	4.2	5.2	2.3	3.5
250	DC-3	1.2	RIG2-2D42	24	10	19	12	4.2	5.2	2.3	3.5
250	DC-3	1.2	RIG2-2D43	24.8	9.5	18.4	9.5	5.2	6.2	2.3	3.5
250	DC-4	1.2	RIG2-2D44	25	10	19	12	4.2	5.2	2.5	3.5
250	DC-2	1.2	RIG2-2D45	25	10	19	12	3.7	4.7	2.5	3.5
400	DC-1	1.2	RIG2-1C3	32	13	22.2	12.7	4.7	5.7	1.5	4
500	DC-2	1.2	RIG2-1C3	32	13	22.2	12.7	4.7	5.7	2.5	4
250	DC-8	1.3	RFGB1M01	24	10	19	12	4.2	5.2	2.5	3.5
300	DC-3.5	1.25	RFGB1M01	32	10	22.2	12.7	4.2	5.2	1.5	3.5
350	DC-3.5	1.25	RFGB1M01	32	10	22.2	12.7	4.2	5.2	1.5	3.5
