High Power Flanged Terminations

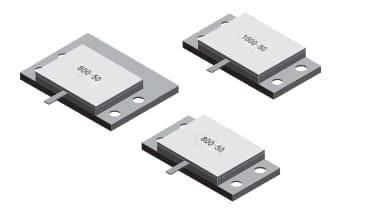

RIG2/RFG-RF Single-lead Four-holes Flanged Terminations

General Specifications

Power: 300~1200Watts
Frequency: DC~4.5GHz(VSWR)
Standard Resistance: 50 Ohm
Resistance Tolerance: ±1%、±2%、±5%(default)
Temperature Coefficient: ≤±300PPM/°C
Temperature Range : -55°C~125°C
Default Substrate Material: BeO
RoHS compliant
Standard:Q/20275660-7.2-2019
We can provide the customized product according to the customer's requirements.
Default Leads length:L=10±0.5mm

Order Information

Product Reference

Wide flange

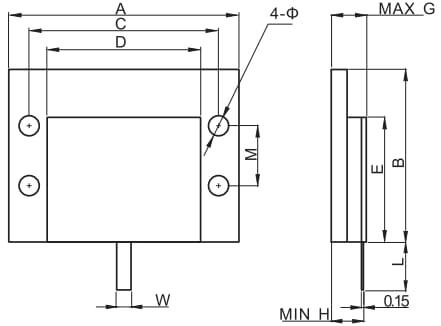

Power(W)	Frequency(GHz)	Model	Dimensions(mm)
Power(W)	Frequency(GHz)	Model	A±0.2	B±0.2	C±0.15	M±0.15	D	H(min)	G(max)	W±0.2	Φ	E
300	DC-3	RIG2-2D4	30	16	25	9	12	5.2	6.2	2.3	3.2	10
600	DC-1	RIG2-5C3	48.3	26.4	39.4	12.7	32	6.2	7.7	2	4.5	25
800	DC-1	RIG2-5C2	48	36	39.5	12.5	32	6.2	7.7	2	4.2	25
900	DC-1	RIG2-5C2	48	36	39.5	12.5	32	6.2	7.7	2.5	4.2	25

Standard flange

Power(W)	Frequency(GHz)	Model	Dimensions(mm)
Power(W)	Frequency(GHz)	Model	A±0.2	B±0.2	C±0.15	M±0.15	D	H(min)	G(max)	W±0.2	Φ
400	DC-2.5	RIG2-1C	30	16	25	9	18.5	6.2	7.2	2.5	3.2
400	DC-0.4	RIG2-1C1	48	26	39.5	12.5	26	5.2	6.7	2.5	4.2
400	DC-0.8	RIG2-1C2	48	26	39.5	12.5	26	6.2	7.7	2.5	4.2
500	DC-3.5	RIG2-1C	30	16	25	9	18.5	6.2	7.2	2.5	3.2
800	DC-1	RIG2-5C	48	26	39.5	12.5	32	8.2	9.7	2.5	4.2
800	DC-1.2	RIG2-5C5	48	26	39.5	12.5	32	6.2	7.7	2.5	4.2
800	DC-1	RIG2-5C1	48	26	39.5	12.5	32	6.2	7.7	2	4.2
800	DC-0.4	RIG2-5C3	48.3	26.4	39.4	12.7	26	5.2	6.7	4	4.5
900	DC-1	RIG2-5C1	48	26	39.5	12.5	32	6.2	7.7	2.5	4.2
1000	DC-0.6	RIG2-5C	60	40	45	20	30	8.2	9.7	2	4.2
1000	DC-0.7	RIG2-5C1	57	30	50	12	40	8.2	9.7	2	4.2
1200	DC-0.35	RIG2-5C	60	40	45	20	30	8.2	9.7	2.5	4.2
1200	DC-0.5	RIG2-5C1	57	30	50	12	40	8.2	9.7	2.5	4.2
300	DC-4.5	RFGB1E01	22	18	16	8	10	4.7	5.7	1.5	2.5
1000	DC-1	RFGB1E01	48	26	39.5	12.5	26	8.2	9.7	4	4.2
1000	1.2-1.6	RFGB1E03	48	26	39.5	12.5	32	6.7	8.2	4	4.2
