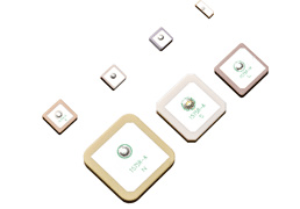

Single-mode Dielectric Antennas

Series： Single-mode Dielectric Antennas

Application：positioning,navigation,timing.

Specification

Show entries

Search:

Edit
Part Number	Size（mm）	Norminal Frequency（MHz）	-10dB Bandwidth (MHz)min.	VSWR （in BW）max.	Ground Plane Size（mm）	Application
DAE1575R35**A	35.5*35.5	1575.42	18.0	2.0	50*50	GPS
DAE1575R25**A	25*25	1575.42	15.0	2.0	70*70	GPS
DAE1575R25**B	25*25	1575.42	15.0	2.0	70*70	GPS
DAE1575R20**A	20*20	1575.42	8.0	2.0	40*40	GPS
DAE1575R18**C	18*18	1575.42	8.0	2.0	40*40	GPS
DAE1575R18**D	18*18	1575.42	8.0	2.0	40*40	GPS
DAE1575R18**F	18.5*18.5	1575.42	8.0	2.0	40*40	GPS
DAE1575R18**H	18.5*18.5	1575.42	8.0	2.0	15*15	GPS
DAE1575R15**D	15*15	1575.42	6.0	2.0	13*13	GPS
DAE1575R13**A	13*13	1575.42	5.0	2.0	12*12	GPS
DAE1575R12**A	12*12	1575.42	5.0	2.0	12*12	GPS
DAE1575R11**A	11*11	1575.42	4.0	2.0	10*10	GPS
DAE1575R10**A	10*10	1575.42	4.0	2.0	10*10	GPS
DAL 15752006*A	20*6	1575.42	-	-	20*6	GPS
DAL 15752006*B	20*6	1575.42	-	-	20*6	GPS
DAL 15751606*A	16*6	1575.42	-	-	16*6	GPS

Showing 1 to 16 of 16 entries

Note: Antenna thinkness can be customized.
