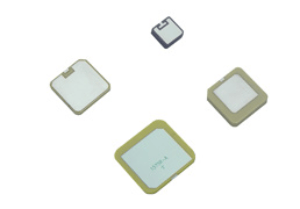

SMD Dielectric Antennas

Series： SMD Dielectric Antennas

Application：positioning,navigation,timing.

Specifications

Show entries

Search:

Edit
Part Number	Size（mm）	Norminal Frequency（MHz）	-10dB Bandwidth (MHz)min.	VSWR （in BW）max.	Ground Plane Size（mm）	Application
DAC1568R25**A	25*25	1561-1575	20.0	2.0	50*50	BD+GPS
DAC1568R18**A	18*18	1561-1575	-	-	50*50	BD+GPS
DAC1568R09**A	9*9	1561-1575	-	-	50*50	BD+GPS
DAC1575R25**A	25*25	1575.42	15.0	2.0	50*50	GPS
DAC1575R18**A	18*18	1575.42	8.0	2.0	50*50	GPS
DAC1575R09**A	9*9	1575.42	6.0	2.0	50*50	GPS
DAC1590R25**A	25*25	1575-1610	-	-	50*50	GPS+GLONASS
DAC1590R18**A	18*18	1575-1610	-	-	50*50	GPS+GLONASS
DAC1590R09**A	9*9	1575-1610	-	-	50*50	GPS+GLONASS

Showing 1 to 9 of 9 entries

Note: Antenna thinkness can be customized
