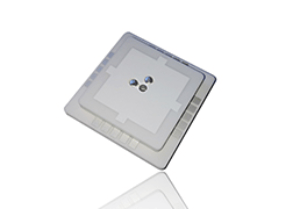

Series： Stacked Dielectric Antennas
Application：positioning,navigation,timing.

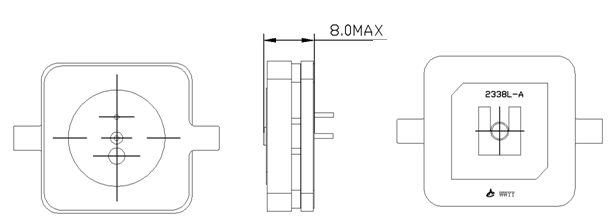

Outline Drawing
Specifications
| Part Number | Size(mm) | Frequency (MHz) | Ground plate Size(mm) | Application |
|---|---|---|---|---|
| DAD1227X-1575X | 50*50/40*40 | 1227/1575 | 70*70 | GPS L1+L2 |
| 5040B-4040B | ||||
| DAD1575R-2332L | 25*25 | 1575/2338 | 50*50 | GPS/XM-Radio |
| 2520A-2540C | ||||
| DAD1575R-2332L | 25*25 | 1575/2338 | 50*50 | |
| 2520A-2520C | ||||
| DAD1575R-2338L | 20*20 | 1575/2338 | 50*50 | |
| 2020B-2020C |
