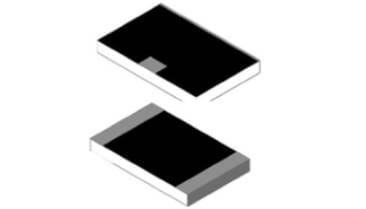

ATR offer a wide selection of SMT chip terminations handling input power
levels up to 250W and covering frequency ranges up to 4 GHz.
the surface mount termination is improved by increasing the solderable
grounding area. This eliminates the need for bolt down heat sinks and
tabs, thereby reducing assembly costs.
| Impedance | 50 Ohms |
| Frequency Range | DC to 30 GHz |
| Power Rating | 100% @ 100 °C |
| Derates to | 0% @ 150 °C |
| Operating Temperature | -55 °C to 150 °C |
| Resistive Material | Thick Film |
| Terminal Material | Thick Film, Nickel Barrier, Solder or no lead Silver Plated Finish |
Power Rating and Derating

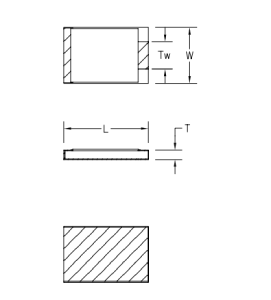

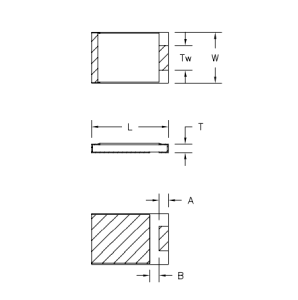

| Power Rating | Frequency | VSWR | Dimensions(mm) | Model | |||||
| （W） | (GHz) | (Max) | W | L | H | A | B | C | Specification |
| 1 | DC-30 | 1.30 | 0.5 | 1 | 0.25 | N/A | N/A | N/A | |
| 2 | DC-12 | 1.20 | 0.7 | 1.1 | 0.25 | N/A | N/A | N/A | |
| 3 | DC-6 | 1.28 | 1.27 | 2 | 0.6 | N/A | N/A | N/A | |
| 10 | DC-3 | 1.20 | 1.27 | 2.54 | 0.6 | N/A | N/A | N/A | |
| 12 | DC-6 | 1.25 | 1.5 | 3 | 0.38 | N/A | N/A | N/A | |
| 20 | DC-2.2 | 1.20 | 2.2 | 2 | 0.4 | N/A | N/A | N/A | |
| 5 | DC-12 | 1.35 | 2.5 | 3 | 0.4 | N/A | N/A | N/A | |
| 20 | DC-6 | 1.20 | 2.5 | 5 | 0.6 | N/A | N/A | N/A | |
50 | DC-12 | 1.40 | 3 | 2.5 | 0.6 | N/A | N/A | N/A | |
| 20 | DC-3 | 1.20 | 4 | 4 | 1 | N/A | N/A | N/A | |
| 20 | DC-18 | 1.35 | 5 | 2.5 | 0.6 | N/A | N/A | N/A | |
20 | DC-6 | 1.20 | 5 | 2.5 | 0.6 | N/A | N/A | N/A | |
80 | DC-18 | 1.25 | 5 | 5 | 1 | N/A | N/A | N/A | |
40 | DC-3 | 1.20 | 6 | 4.7 | 1 | N/A | N/A | N/A | |
100 | DC-6 | 1.30 | 6.35 | 6.35 | 1 | N/A | N/A | N/A | |
50 | DC-7.2 | 1.25 | 7 | 3.7 | 1 | N/A | N/A | N/A | |
100 | DC-3 | 1.20 | 8.9 | 5.7 | 1 | N/A | N/A | N/A | |
250 | DC-2.7 | 1.25 | 9.5 | 5.7 | 1 | N/A | N/A | N/A | |
200 | DC-1 | 1.15 | 9.5 | 6.35 | 1 | N/A | N/A | N/A | |
250 | DC-3 | 1.20 | 9.5 | 9.5 | 1 | N/A | N/A | N/A |
Suggested mounting procedures:
1.Solder part or leads in place with controlled temperature iron (260℃).
2.Drill thermal vias through PCB and fill with solder.
