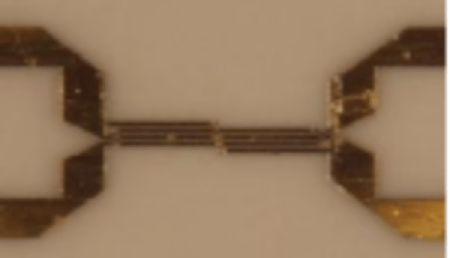

ATR uses leading thin-film ceramic technology to manufacture high-performance couplers,
Frequency coverage DC-60GHZ,
Miniaturization, broadband, high power, high performance, high reliability
Can meet customers’ demanding technical performance requirements,
Used in military, commercial, instrumentation, microwave and millimeter wave wireless communication fields
| Num | Freq.Range | Coupling Flatness | 耦合平坦度 | 方向性(typ.) | 插入损耗 | VSWR | 尺寸 |
|---|---|---|---|---|---|---|---|
| (GHz) | (typ.) | (dB) | (dB) | (dB) | (typ.) | (mm) | |
| (dB) | |||||||
| 1PCR35/R6-13 | 0.35-0.6 | 13 | ≤±1.5 | 5 | ≤0.5 | 1.5 | 5.5×7.5×0.39 |
| BMCPR6/1R6-15 | 0.6-1.6 | 15 | ≤±1.5 | 5 | ≤0.6 | 1.5 | 5. 5×4.0×0.39 |
| BMCP1/2-25 | 1-2 | 25 | ≤±2.0 | 10 | ≤0.4 | 1.5 | 7.0×5.5×0.39 |
| 5PC2/18-25 | 2-18 | 24 | ≤±1.5 | 10 | ≤0.5 | 1.5 | 10×3×0.39 |
| 2PC3/9-20 | 3-9 | 20 | ≤±1.5 | 15 | ≤0.35 | 1.5 | 10×3.5×0.39 |
| 2PC6/18-20 | 6-18 | 21 | ≤±1.5 | 8 | ≤0.4 | 1.5 | 4.7×3.5×0.39 |
| BMCP3/7-30 | 3-7 | 30 | ≤±2.5 | 10 | ≤0.4 | 1.5 | 5.0×3.2×0.39 |
| BMCP4/20-30 | 4-20 | 30 | ≤±3.0 | 10 | ≤0.45 | 1.5 | 4.8×5.0×0.39 |
| 1PC10/20-10 | 10-20 | 10 | ≤±1.5 | 12 | ≤0.35 | 1.5 | 3×3×0.39 |
| BMCP8/26-10 | 8-26 | 10 | ≤±2.0 | 10 | ≤0.5 | 1.5 | 3×2.5×0.39 |
| 1PC10/20-20 | 10-20 | 20 | ≤±1.5 | 15 | ≤0.35 | 1.5 | 3×2.5×0.39 |
| 1PC15/35-20 | 15-35 | 20 | ≤±1.5 | 15 | ≤0.4 | 1.5 | 2×2.5×0.39 |
| 1PC15/30-10 | 15-30 | 10 | ≤±1.5 | 12 | ≤0.35 | 1.5 | 2×2.5×0.39 |
| 1PC15/30-15 | 15-30 | 15 | ≤±1.5 | 12 | ≤0.35 | 1.5 | 2.2×2.5×0.39 |
| 1PC20/30-23 | 20-30 | 23 | ≤±1 | 3 | ≤0.4 | 1.5 | 3.5×3×0.26 |
| 1PC20/40-20 | 20-40 | 19 | ≤±2 | 10 | ≤0.5 | 1.5 | 3×3.5×0.39 |
| 1PC20/40-25 | 20-40 | 22 | ≤±2 | 10 | ≤0.5 | 1.5 | 3×3.5×0.39 |
| 1PC25/40-10 | 25-40 | 10 | ≤±1.5 | 10 | ≤0.35 | 1.5 | 1.5×2.0×0.39 |
