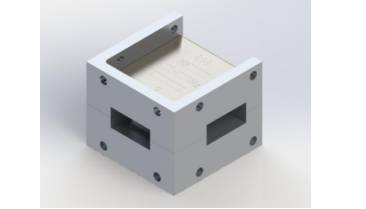

Waveguide Circulators

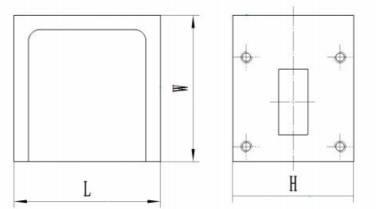

| Operating frequency (GHz) | Bandwidth (MHz) | Insertion Loss (dB) Max | Isolation (dB) Min | VSWR Max | Model series | Passing Power /Reflected Power (W) | Outline dimensions L*W*H (mm) | Operating temperature (℃) | Connection method |
| 0.915 | 10 | 0.2 | 20 | 1.2 | BKHHB1253-** | 70K | 593*562*213 | -40~70 | BJ9 |
| 1.8~2.5 | 100 | 0.3 | 20 | 1.2 | BKHHB1466-** | 20K | 200*210*106.5 | -40~70 | BJ22 |
| 2.2~3.2 | 100 | 0.3 | 20 | 1.2 | BKHHB1465-** | 6K | 180*195*95.3 | -40~70 | BJ26 |
| 2.7~3.1 | FULL | 0.5 | 20 | 1.25 | BKHHB1263-** | 1000 | 140*153*94 | -40~70 | BJ32 |
| 4.4~5.0 | FULL | 0.3 | 20 | 1.2 | BKHHB1171-** | 1500 | 114*114*84 | -40~70 | BJ48 |
| FULL | 0.3 | 20 | 1.2 | BKHHB1175-** | 600 | 100*100*64 | -40~70 | BJ48 | |
| 4.4~6.6 | FULL | 0.3 | 18 | 1.3 | BKHHB1438-** | 1000 | 114*114*62 | -40~70 | BJ58 |
| 5.7~6.7 | FULL | 0.3 | 20 | 1.25 | BKHHB1392-** | 1000 | 100*100*62 | -40~70 | BJ58 |
| 7.0~9.0 | 1000 | 0.3 | 20 | 1.25 | BKHHB1321-** | 1000 | 65*72*48 | -40~70 | BJ84 |
| 8.0~12.0 | 1000 | 0.3 | 20 | 1.25 | BKHHB1356-** | 500 | 50.8*50.8*41.4 | -40~70 | BJ100 |
| 10.0~15.0 | 1000 | 0.3 | 20 | 1.25 | BKHHB11297-** | 200 | 40*47*38 | -40~70 | BJ120 |
| 12.0~18.0 | FULL | 0.5 | 20 | 1.25 | BKHHB1210-** | 100 | 38*42*33 | -40~70 | BJ140 |
| 18.0~26.5 | 2000 | 0.4 | 20 | 1.25 | BKHHB1265-** | 50 | 27*24*22 | -40~70 | BJ220 |
| 26.5~40.0 | 2000 | 0.4 | 18 | 1.2 | BKHHB1209-** | 30 | 19.1*24*19.1 | -40~85 | BJ320 |
| FULL | 0.5 | 14 | 1.5 | BKHHB1209-** | 30 | 19.1*24*19.1 | -40~85 | BJ320 | |
| 34.5~35.5 | 800 | 0.5 | 18 | 1.25 | BKHHB1191-** | 50 | 20*30*25 | -40~70 | BJ320 |
| 28.0~36.0 | 2000 | 0.4 | 20 | 1.25 | BKHHB1209-** | 10 | 19.1*24*19.1 | -40~70 | BJ320 |
| Note: The above index data are typical values, and the test temperature is room temperature (25℃). | |||||||||
