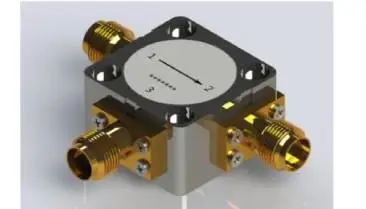

Coaxial Circulators

Product Features

• Wide Frequency Range: Capable of covering a broad spectrum from low frequencies to millimeter-wave, making it suitable for a variety of applications.
• High Power Handling: Designed with a coaxial structure, it can handle high-power signals far exceeding those of microstrip circulators.
• Low Insertion Loss: Ensures minimal signal loss during transmission, maintaining high efficiency and signal integrity.
• High Isolation: Provides excellent isolation between ports, effectively preventing signal reflections and crosstalk to protect sensitive components.
• Excellent VSWR: Features a very low Voltage Standing Wave Ratio, ensuring a good impedance match with system components.
• Rugged and Durable: Utilizes a robust coaxial package that can withstand harsh environmental conditions, such as vibration and shock.
• Easy to Connect: Comes with standard coaxial connectors (e.g., SMA, N-type, K-connector), facilitating easy connection to other coaxial components and cables.

Applications

• Radar Systems: Used to route signals between the transmitter and receiver, allowing them to share a single antenna while protecting the receiver from high-power transmit signals.
• Satellite Communications: Used for signal path isolation and selection in ground stations and on-board satellite equipment.
• Electronic Warfare: Applied for signal management and protecting sensitive electronic equipment.
• Wireless Communication Systems: Enables the separation of transmit and receive signals in high-power base stations and broadcast systems.
• Test and Measurement: Serves as a key component in laboratories and on production lines for signal isolation, routing, and directional coupling.
• Medical Equipment: Applied in RF ablation and Magnetic Resonance Imaging (MRI) systems.
• Particle Accelerators: Used for the protection of high-power RF sources.
