High-Power Flange Attenuators
General Specifications
- RF microWave application
- Impedance: 50Ω
- Power:5~200W
- Attenuation Value:0-30dB
- Attenuation Tolerance: 0~10dB±0.6dB
11~20dB±0.8dB
21~30dB±1dB - Frequency: DC~4GHz (VSWR≤1.2)
- Temperature Range:-55℃~125℃
- Default Substrate Material:BeO
- RoHS compliant
- Standard:Q/20275660-7.14-2020
- Standard Lead length: L=5±0.5mm
We can provide the customized product according to the customer’s requirements
Applications:
Power Amplifiers,Combiners,Telecom Base Stations,Radar Systems,Satellite Communication,Test & Measurement

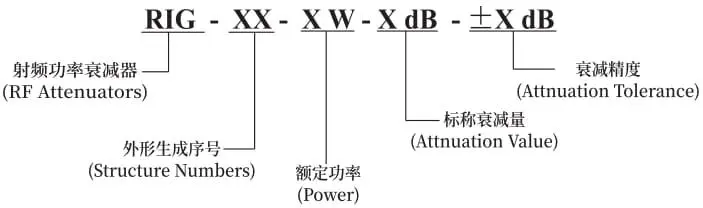

Order Information

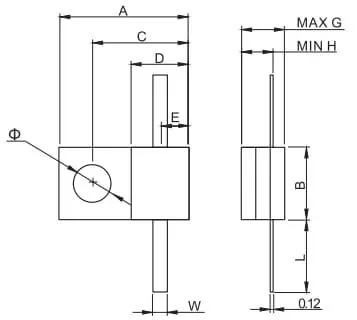

Product Reference
| Power | Model | Frequency(GHz) | Attenuation Value | Dimensions(mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Watts | GHz | A±0.2 | B±0.2 | C±0.15 | D | H | G | W±0.2 | Φ | ||
| 10 | RIG-F | 4 | 0dB~30dB | 16 | 6 | 13 | 6 | 2.2 | 3.2 | 1 | 2.2 |
| 20 | RIG-F | 4 | 0dB~30dB | 16 | 6 | 13 | 6 | 2.2 | 3.2 | 1 | 2.2 |
| 30 | RIG-F | 4 | 0dB~30dB | 16 | 6 | 13 | 6 | 2.2 | 3.2 | 1 | 2.2 |
| 30 | RIG-F7 | 4 | 0dB~30dB | 15 | 6 | 11 | 6 | 2 | 3 | 1 | 2.2 |
| 60 | RIG-F | 4 | 0dB~15dB | 16 | 6 | 13 | 6 | 2.2 | 3.2 | 1 | 2.2 |
| 60 | RIG-F7 | 4 | 0dB~15dB | 15 | 6 | 11 | 6 | 2 | 3 | 1 | 2.2 |
| 60 | RIG-F | 3 | 16dB~30dB | 16 | 6 | 13 | 9 | 2.7 | 3.7 | 1 | 2.2 |
| 60 | RIG-F5 | 3 | 21dB~30dB | 20 | 6 | 14 | 9 | 3.2 | 4.2 | 1 | 3.2 |
| 60 | RIG-F6 | 3 | 21dB~30dB | 18 | 6 | 14 | 9 | 2.7 | 4.7 | 1 | 2.2 |
| 100 | RIG-F | 3 | 0dB~20dB | 16 | 6 | 13 | 9 | 2.7 | 3.7 | 1 | 2.2 |
| 100 | RIG-F5 | 3 | 0dB~20dB | 20 | 6 | 14 | 9 | 3.2 | 4.2 | 1 | 3.2 |
| 100 | RIG-F6 | 3 | 0dB~20dB | 18 | 6 | 14 | 9 | 2.7 | 3.7 | 1 | 2.2 |
| 100 | RIG-F8 | 2 | 30dB | 25 | 10 | 19 | 10 | 3.7 | 3.7 | 1 | 3.5 |
| 150 | RIG-F8 | 2 | 0dB~10dB | 25 | 10 | 19 | 10 | 3.7 | 4.7 | 1 | 3.5 |
| 200 | RIG-F8 | 2 | 0dB~10dB | 25 | 10 | 19 | 12 | 4.2 | 5.2 | 1 | 3.5 |

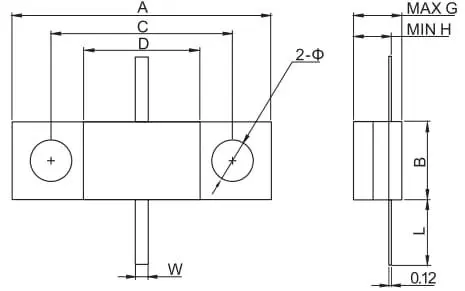

Product Reference
| Power | Model | Frequency | Attenuation Value | Dimensions(mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Watts | GHz | A±0.2 | B±0.2 | C±0.15 | D | H | G | W±0.2 | Φ | ||
| 5 | RIG-F | 4 | 0dB~30dB | 11 | 6 | 8.5 | 6 | 2 | 3 | 1 | 2.2 |
| 30 | RIG-F4 | 4 | 0dB~30dB | 11 | 6 | 8.5 | 6 | 2 | 3 | 1 | 2.2 |
| 60 | RIG-F4 | 4 | 0dB~15dB | 11 | 6 | 8.5 | 6 | 2 | 3.2 | 1 | 2.2 |
