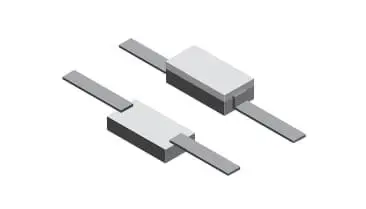

RI21-Glass Glaze Resistors
General Specifications
Power: 0.125~0.5Watts
Standard Resistance: 100 Ohm
Resistance Tolerance: ±3%、±5%、±10%(default)
Temperature Range : -55°C~125°C
Default Substrate Material: RI21 , Al₂O₃;
RI21-T, BeO.
RoHS compliant
We can provide the customized product according to the customer’s requirements.
| Temperature Range | ||
|---|---|---|
| Model | -55°C~20°C | 20°C~125°C |
| RI21 | ≤±500PPM/°C | ≤±300PPM/°C |
| RI21-T | ≤±300PPM/°C | ≤±300PPM/°C |
Applications:
Medical Equipment, X-Ray, Power Supplies, Test & Measurement, Laser Systems, Industrial Control

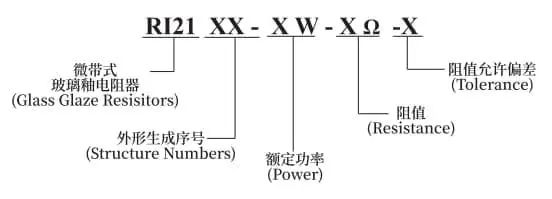

Order Information
Product Reference

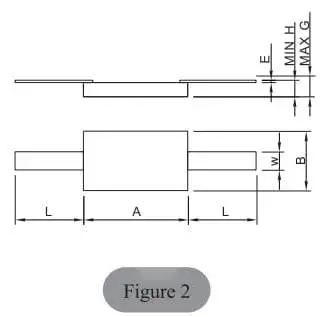

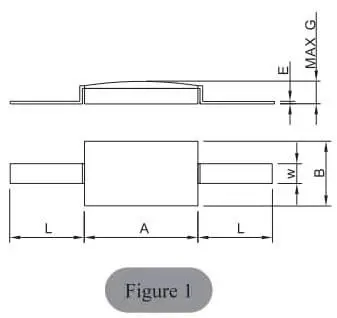

| Power(W) | Model | Figure | Dimensions(mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A±0.2 | B±0.2 | E | H(min) | G(max) | W±0.15 | L±0.5 | |||
| 0.125W | RI21 | 1 | 3 | 1.2 | 0.05 | N/A | 1 | 0.7 | 4.5 |
| 0.25W | 1 | 4.5 | 1.5 | 0.05 | N/A | 1 | 1.1 | 5 | |
| 0.5W | 1 | 6 | 2 | 0.12 | N/A | 1.3 | 1.2 | 5 | |
| Power(W) | Model | Figure | Dimensions(mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A±0.2 | B±0.2 | E | H(min) | G(max) | W±0.15 | L±0.5 | |||
| 0.5W | RI21-T1 | 1 | 2 | 1 | 0.12 | N/A | 1.2 | 0.7 | 2 |
| 0.5W | RI21-T2 | 1 | 2 | 1 | 0.12 | N/A | 1.2 | 0.7 | 1.5 |
| 0.5W | RI21-T3 | 2 | 2 | 1 | 0.12 | 0.5 | 0.8 | 0.7 | 1.5 |
