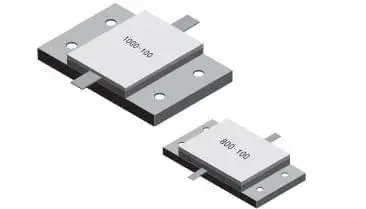

RIG2/RFG-RF Double-leads Four-holes Flanged Resistors
General Specifications
|
Applications:
RF MicroWave,Power Amplifiers, Combiners, Telecom Base Stations, Radar Systems, Test & Measurement, Aerospace
Order Information
Product Reference

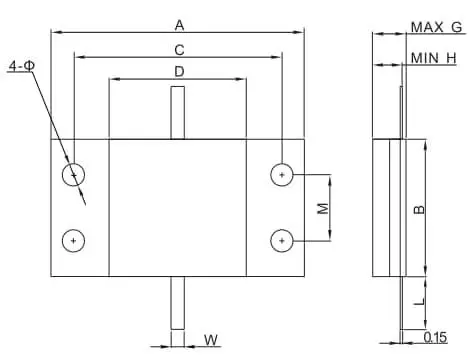

| Power | Capacitance | Model | Dimensions(mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Watts | Max pF | A±0.2 | B±0.2 | C±0.15 | M±0.15 | D | H(min) | G(max) | W±0.2 | Φ | |
| 400 | 6.1 | RIG2-2C | 30 | 16 | 25 | 9 | 18.5 | 6.2 | 7.2 | 2.5 | 3.2 |
| 400 | 14.5 | RIG2-2C1 | 48 | 26 | 39.5 | 12.5 | 26 | 5.2 | 6.7 | 2.5 | 4.2 |
| 400 | 10 | RIG2-2C2 | 48 | 26 | 39.5 | 12.5 | 26 | 6.2 | 7.7 | 2.5 | 4.2 |
| 800 | 10 | RIG2-4C | 48 | 26 | 39.5 | 12.5 | 32 | 8.2 | 9.7 | 2.5 | 4.2 |
| 800 | 10 | RIG2-4C1 | 48 | 26 | 39.5 | 12.5 | 32 | 6.2 | 7.7 | 2.5 | 4.2 |
| 800 | 15 | RIG2-4C3 | 48.3 | 26.4 | 39.4 | 12.7 | 26 | 5.2 | 6.7 | 4 | 4.5 |
| 1000 | 27 | RIG2-4C | 60 | 40 | 45 | 20 | 30 | 8.2 | 9.7 | 6 | 4.2 |
| 1000 | 27 | RIG2-4C1 | 57 | 30 | 50 | 12 | 40 | 8.2 | 9.7 | 6 | 4.2 |
| 1000 | 15 | RIG2-4C2 | 60 | 40 | 45 | 20 | 30 | 11.2 | 12.7 | 6 | 4.2 |
| 1200 | 27 | RIG2-4C | 60 | 40 | 45 | 20 | 30 | 8.2 | 9.7 | 6 | 4.2 |
| 1200 | 27 | RIG2-4C1 | 57 | 30 | 50 | 12 | 40 | 8.2 | 9.7 | 6 | 4.2 |
