Miniature LC Band-Pass Filter
Features
This is a miniaturized LC filter with the following key features:
Compact & Lightweight: Compared to traditional LC filters, it offers a 70% reduction in volume and a 60% reduction in weight, making it ideal for space-constrained applications.
High Reliability & Easy Integration: Using a multi-layer ceramic process, the inductor and capacitor are integrated within the substrate. This simple structure ensures high reliability and easy integration into various circuit boards.
Cost-Effective for Mass Production: The design allows for rapid batch production, significantly reducing the cost of high-volume manufacturing.
Stable Performance: Its lumped-element design ensures that performance is unaffected by external packaging, making it simple and convenient to use.
Applications
Frequency Range: 30MHz to 1500MHz.
Primary Use: Widely applied for harmonic suppression and improving noise floor performance.

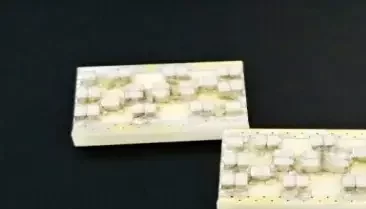

Product Photos
Traditional LC Filter
Miniature LC Filter
Selection Table
| Model | IL0@f0 | Frequency Range | Attenuation | Size(mm) | Page |
|---|---|---|---|---|---|
| (dB) | (MHz) | (dB) | |||
| XCBBP700/2000-S8 | 1 | 700-2000 | ≥40@400MHz&2400MHz | 15×8×4.5 | 5 |
| 6CBBP46U20-S5 | 2 | 36-56 | ≥40@26MHz, ≥40@68MHz | 14×10×4.0 | 6 |
| 6CBBP60U11-S2 | 1.8 | 55-66 | ≥30@42MHz,≥30@78MHz | 14×10×4.5 | - |
| 4CBBP75U50-S2 | 1 | 50-100 | ≥40@25MHz, ≥30@135MHz | 14×10×4.5 | 7 |
| 6CBBP145U30-S2 | 2.5 | 130-160 | ≥40@95MHz, ≥40@195MHz | 14×10×4.5 | 8 |
| 6CBBP150U80-S2 | 1.4 | 110-190 | ≥40@70MHz,≥40@240MHz | 14×10×4.5 | - |
| 6CBBP155U40-S2 | 2.5 | 135-175 | ≥40@105MHz,≥40@207MHz | 14×10×4.5 | 9 |
| 6CBBP160U60-S2 | 1.5 | 120-180 | ≥40@80MHz,≥40@210MHz | 14×10×4.5 | - |
| 6CBBP180U90-S2 | 1.3 | 135-225 | ≥40@85MHz,≥40@275MHz | 14×10×4.5 | - |
| 6CBBP200U200-S2 | 1 | 100-300 | ≥40@60MHz, ≥40@430MHz | 14×10×4.5 | 10 |
| 6CBBP239U54-S2 | 2.2 | 212-266 | ≥40@165MHz,≥40@320MHz | 14×10×4.5 | 11 |
| 6CBBP240U80-S2 | 1.5 | 200-280 | ≥40@140MHz,≥40@350MHz | 14×10×4.5 | - |
| 6CBBP245U50-S2 | 1.6 | 220-270 | ≥40@160MHz,≥40@330MHz | 14×10×4.5 | - |
| 6CBBP300U100-S2 | 1.4 | 250-350 | ≥40@180MHz,≥40@420MHz | 14×10×4.5 | - |
| 6CBBP305U110-S2 | 1.5 | 250-360 | ≥40@180MHz,≥40@435MHz | 14×10×4.5 | 12 |
| 6CBBP310U190-S2 | 1.2 | 215-405 | ≥40@130MHz,≥40@500MHz | 14×10×4.5 | - |
| 6CBBP330U140-S2 | 1.2 | 210-350 | ≥40@150MHz,≥40@440MHz | 14×10×4.5 | - |
| 6CBBP380U160-S2 | 1 | 300-460 | ≥40@175MHz,≥40@575MHz | 14×10×4.5 | - |
| 6CBBP400U240-S2 | 0.9 | 280-520 | ≥40@170MHz,≥40@660MHz | 14×10×4.5 | - |
| 6CBBP430U260-S2 | 0.9 | 300-560 | ≥40@170MHz,≥40@700MHz | 14×10×4.5 | - |
| 6CBBP485U110-S1-M | 2 | 430-540 | ≥40@350MHz,≥40@610MHz | 14×9.0×4.5 | - |
| 6CBBP485U330-S2 | 1 | 320-650 | ≥40@215MHz,≥40@815MHz | 14×10×4.5 | 13 |
| 6CBBP485U350-S2 | 0.9 | 310-660 | ≥40@220MHz,≥40@810MHz | 14×10×4.5 | 14 |
| 6CBBP505U270-S2 | 1 | 370-640 | ≥40@260MHz,≥40@795MHz | 14×10×4.5 | 15 |
| 6CBBP512U125-S1-M | 2 | 450-575 | ≥40@360MHz,≥40@660Mz | 14×9.0×4.5 | - |
| 6CBBP515U290-S2 | 1.3 | 370-660 | ≥40@270MHz,≥40@795MHz | 14×10×4.5 | 16 |
| 6CBBP572U125-S1-M | 1.8 | 510-635 | ≥40@415MHz,≥40@740MHz | 14×9.0×4.5 | - |
| 6CBBP600U130-S1-M | 1.8 | 535-665 | ≥40@445MHz,≥40@752MHz | 14×9.0×4.5 | 17 |
| 6CBBP600U180-S1-M | 1.5 | 510-690 | ≥40@380MHz,40@820MHz | 14×9.0×4.5 | 18 |
| 6CBBP655U310-S1-M | 1.2 | 500-810 | ≥40@350MHz,≥40@1020MHz | 14×9.0×4.5 | - |
| 6CBBP675U230-S1-M | 2 | 560-790 | ≥40@430MHz,≥40@980MHz | 14×9.0×4.5 | - |
| 6CBBP715U230-S1-M | 1.2 | 600-830 | ≥40@460MHz,≥40@960MHz | 14×9.0×4.5 | - |
| 6CBBP727U295-S1-M | 1.3 | 580-875 | ≥40@455MHz,≥40@1020MHz | 14×9.0×4.5 | 19 |
| 6CBBP733U405-S1-M | 1.2 | 530-940 | ≥40@405MHz,≥40@1150MHz | 14×9.0×4.5 | 20 |
| 6CBBP740U260-S1-M | 1.2 | 610-870 | ≥40@480MHz,≥40@1010MHz | 14×9.0×4.5 | - |
| 6CBBP740U440-S1-M | 1.2 | 530-935 | ≥40@407MHz,≥40@1190MHz | 14×9.0×4.5 | 21 |
| 6CBBP750U410-S1-M | 1.2 | 520-960 | ≥40@405MHz,≥40@1160MHz | 14×9.0×4.5 | - |
| 6CBBP760U440-S1-M | 1 | 460-1050 | ≥40@340MHz,≥40@1360MHz | 14×9.0×4.5 | 22 |
| 6CBBP760U590-S1-M | 0.8 | 540-980 | ≥40@415MHz,≥40@1175MHz | 14×9×4.5 | 23 |
| 6CBBP802U384-S1-M | 1 | 610-994 | ≥40@475MHz,≥40@1190MHz | 14×9×4.5 | 24 |
| 6CBBP822U655-S1-M | 0.8 | 495-1150 | ≥40@360MHz,≥40@1460MHz | 14×9×4.5 | 25 |
| 6CBBP825U90-S1-M | 2 | 780-870 | ≥40@660MHz,≥40@1000MHz | 14×9.0×4.5 | - |
| 6CBBP900U120-S1-M | 2 | 840-960 | ≥40@710MHz,40@1100MHz | 14×9.0×4.5 | 26 |
| 6CBBP1058U285-S1-M | 1.4 | 915-1200 | ≥40@740MHz,≥40@1390MHz | 14×9.0×4.5 | 27 |
| 6CBBP1200U300-S1-M | 2 | 1050-1350 | ≥40@800MHz,≥35@1550MHz | 14×9.0×4.5 | - |
| 6CBBP1230U460-S1-M | 1.3 | 1000-1460 | ≥40@775MHz,≥30@1740MHz | 14×9.0×4.5 | 28 |
| 6CBBP1230U480-S1-M | 1.2 | 990-1470 | ≥40@795MHz,≥40@1730MHz | 14×9.0×4.5 | 29 |
| 6CBBP1500U800-S1-M | 1.2 | 1100-1900 | ≥40@740MHz,≥40@2500MHz | 14×9.0×4.5 | 30 |
