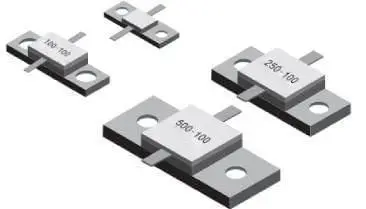

RIG2/RFG-RF Double-leads Double-holes Flanged Resistors
General Specifications
Power: 5~500Watts
Standard Resistance: 100 Ohm
Resistance Tolerance: ±1%、±2%、±5%(default)
Temperature Coefficient: ≤±300PPM/°C //≤±250PPM/°C
Temperature Range : -55°C~125°C/-55°C~150°C
Default Substrate Material: BeO
RoHS compliant
Standard:Q/20275660-7.2-2019
Q/20275660-7.20-2019 (It is formulated in accordance with GJB8263-2014)
We can provide the customized product according to the customer’s requirements.
Default Leads length:L=5±0.5m
Applications:
Power Amplifiers, Combiners, Telecom Base Stations, Radar Systems, Satellite Communication, Test & Measurement

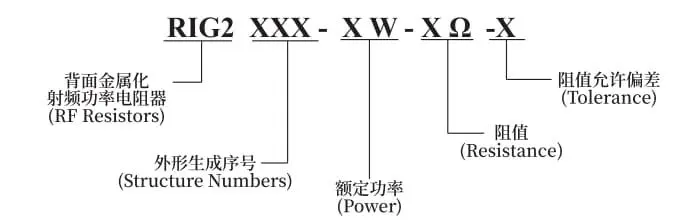

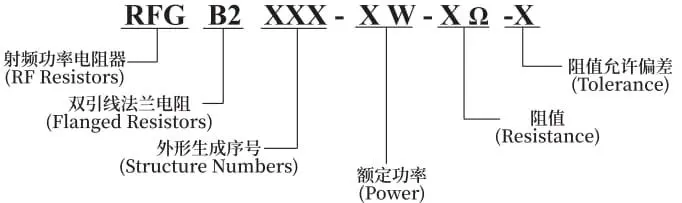

Order Information
Product Reference

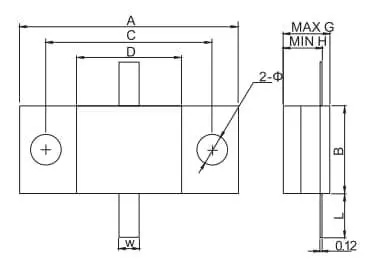

| Power | Capacitance | Model | Dimensions(mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Watts | ≤pF | A±0.2 | B±0.2 | C±0.15 | D | H(min) | G(max) | W±0.2 | Φ | |
| 5 | 1.3 | RIG2-3E | 14 | 4 | 9 | 4 | 2.2 | 3.2 | 1 | 2.2 |
| 10 | 1.3 | RIG2-3E | 14 | 4 | 9 | 4 | 2.2 | 3.2 | 1 | 2.2 |
| 10 | 1.6 | RIG2-3E4 | 13 | 5 | 9.5 | 4 | 2.2 | 3.2 | 1 | 2.2 |
| 10 | 1.3 | RIG2-3E6 | 11 | 4 | 7.5 | 4 | 1.5 | 2.5 | 1 | 2.2 |
| 18 | 1.3 | RIG2-3E | 14 | 4 | 9 | 5 | 2.2 | 3.2 | 1 | 2.2 |
| 30 | 3.7 | RIG2-3D | 20 | 6 | 14 | 9 | 3.2 | 4.2 | 2.1 | 3.2 |
| 60 | 3 | RIG2-3D | 16 | 6 | 13 | 6.4 | 1.7 | 2.7 | 1 | 2.2 |
| 100 | 2.7 | RIG2-3D1 | 20 | 6 | 14 | 9 | 3.2 | 4.2 | 2.3 | 3.2 |
| 150 | 3.7 | RIG2-3D1 | 21 | 8 | 15 | 10 | 3.7 | 4.7 | 2.3 | 3.2 |
| 150 | 3.7 | RIG2-3D2 | 23 | 8 | 18 | 10 | 3.7 | 4.7 | 1.5 | 2.8 |
| 150 | 3.5 | RIG2-3D4 | 22 | 9.5 | 14 | 6.5 | 3.2 | 4.2 | 1 | 4 |
| 250 | 8 | RIG2-3D2 | 25 | 12 | 19 | 10 | 4.2 | 5.2 | 2.3 | 3.2 |
| 250 | 6.7 | RIG2-3D3 | 25 | 10 | 18.5 | 12 | 4.2 | 5.2 | 3 | 3.2 |
| 250 | 6.7 | RIG2-3D31 | 25 | 10 | 18.5 | 12 | 4.2 | 5.2 | 3 | 3.7 |
| 250 | 6 | RIG2-3D32 | 24.8 | 9.5 | 18.4 | 9.5 | 4.2 | 5.2 | 1.8 | 3.5 |
| 250 | 5 | RIG2-3D33 | 25 | 10 | 18.5 | 12 | 4.7 | 5.7 | 2.3 | 3.2 |
| 400 | 7 | RIG2-2C3 | 32 | 13 | 22.2 | 12.7 | 4.7 | 5.7 | 1.5 | 4 |
| 500 | 5.5 | RIG2-2C3 | 32 | 13 | 22.2 | 12.7 | 4.7 | 5.7 | 1.5 | 4 |
