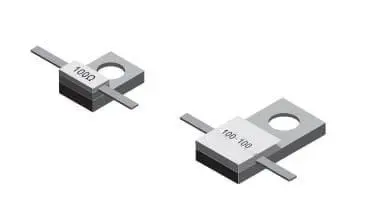

RIG2/RFG-RF Double-leads Single-hole Flanged Resistors
General Specifications
Power: 5~100Watts
Standard Resistance: 100 Ohm
Resistance Tolerance: ±1%、±2%、±5%(default)
Temperature Coefficient: ≤±300PPM/°C //≤±250PPM/°C
Temperature Range : -55°C~125°C/-55°C~150°C
Default Substrate Material: BeO
RoHS compliant
Standard:Q/20275660-7.2-2019
Q/20275660-7.20-2019 (It is formulated in accordance with GJB8263-2014)
We can provide the customized product according to the customer’s requirements.
Default Leads length:L=5±0.5m
Applications:
Power Amplifiers, RF Terminations, Telecom Base Stations, Radar Systems, Test & Measurement, Aerospace
Order Information

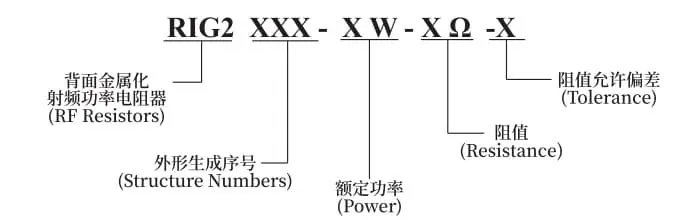

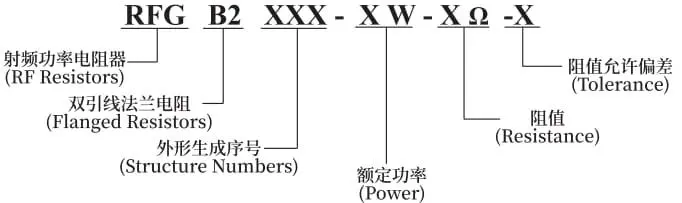

Product Reference

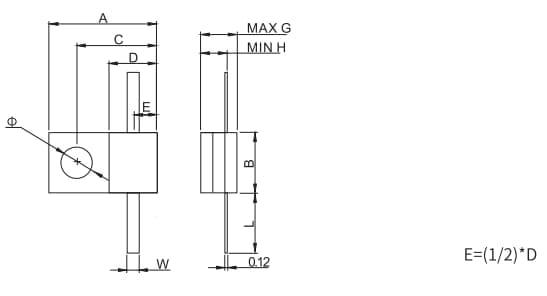

| Power | Capacitance | Model | Dimensions(mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Watts | Max pF | A±0.2 | B±0.2 | C±0.15 | D | H(min) | G(max) | W±0.2 | Φ | |
| 5 | 1 | RIG2-5E | 7.7 | 5 | 5.2 | 2.5 | 2 | 3 | 1 | 3 |
| 10 | 1 | RIG2-5E | 7.7 | 5 | 5.2 | 2.5 | 2.7 | 3.7 | 1 | 3 |
| 18 | 1 | RIG2-5E | 9 | 5 | 6.7 | 2.5 | 2.7 | 3.7 | 1 | 2.6 |
| 20 | 1.1 | RIG2-1D | 9 | 5 | 6.7 | 4 | 3.2 | 4.2 | 1 | 2.6 |
| 20 | 1 | RIG2-5E | 9 | 5 | 6.7 | 2.5 | 2.7 | 3.7 | 1 | 2.6 |
| 20 | 1 | RIG2-5E2 | 7.7 | 5 | 5.2 | 2.5 | 2 | 3 | 1 | 3 |
| 30 | 2.6 | RIG2-1D | 13 | 6.4 | 10 | 6.4 | 2.7 | 3.7 | 1.5 | 3.2 |
| 30 | 0.7 | RIG2-1D2 | 9 | 4 | 6.5 | 4 | 3.2 | 4.2 | 1.5 | 2.2 |
| 30 | 1 | RIG2-5E | 7.7 | 5 | 5.2 | 2.5 | 2.7 | 3.7 | 1 | 3 |
| 40 | 2 | RIG2-1D | 14.5 | 6.4 | 11 | 6.4 | 3.2 | 4.2 | 1.5 | 3.5 |
| 40 | 2.6 | RIG2-1D1 | 12.7 | 6.5 | 9.6 | 6.4 | 2.7 | 3.7 | 1.5 | 3.5 |
| 50 | 2 | RIG2-1D | 13 | 6.4 | 10 | 6.4 | 3.2 | 4.2 | 1.5 | 3.2 |
| 50 | 1 | RIG2-1D1 | 13 | 6.4 | 10 | 6.4 | 4.7 | 5.7 | 1.5 | 3.2 |
| 60 | 2 | RIG2-1D | 13 | 6.4 | 10 | 6.4 | 3.2 | 4.2 | 1.5 | 3.2 |
| 100 | 3 | RIG2-1D | 13 | 6.4 | 10 | 6.4 | 3.2 | 4.2 | 1.5 | 3.2 |
| 100 | 3 | RIG2-1D1 | 14.5 | 6.4 | 11 | 6.4 | 3.2 | 4.2 | 1.5 | 3.5 |
| 100 | 1.1 | RIG2-1D2 | 13 | 6.4 | 10 | 6.4 | 4.7 | 5.7 | 1.5 | 3.2 |
